lot no. 30
19,000 €
6 watchers
Log in to bid
€
Use bidding agent
+ auction fee & VAT
21/02/24 10:07
Closing time
19,000 €
Starting bid
Item details
- Name

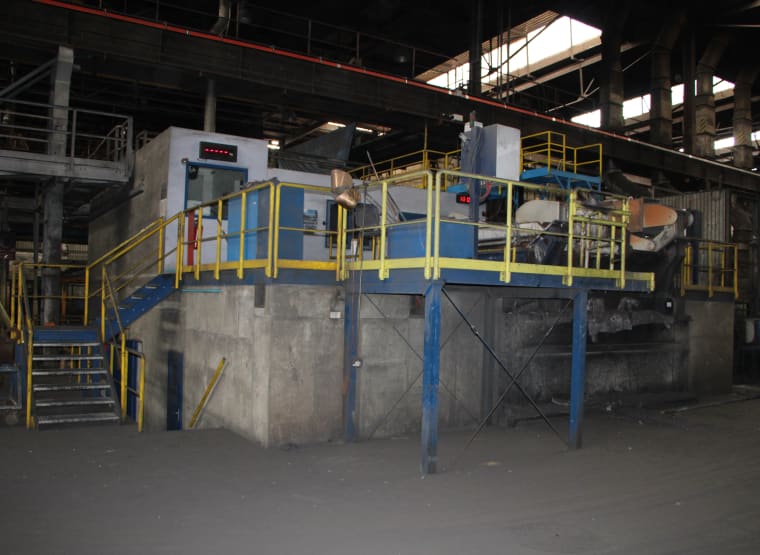

- ABP Medium Frequency Coreless Induction Furnace System
- Item number
- 854071
- Manufacturer
- ABP
- Model / Type
- unknown
- Documents
- LOT_30_ABP_Melting_Furnace_YOM_2018.pdf
- Year of manufacture
- 2018
- Item available from
- immediately
- Item condition
- Location
-
Czech Republic, 26701 Králův Dvůr
- Show on map
- All items at this location
Costs and benefits
- 18 %
- Total Price
- plus VAT
- Shipping costs
- not included
- Delivery terms
- EXW Králův Dvůr, ex foundation, unpackaged
- Payment terms
- 100% payment prior to collection
- tax / deposit
Technical details
- weight approx.
- 1 kg
- Approx. Onsite Dimension. (l x w x h)
- 20,000 x 18,000 x 8,000 mm
Item description
- consisting of:
- medium frequency coreless induction furnace system, type IFM 8
- electrical power supply unit with 1000 kW, 65 Hz solid state converter
- maximum capacity: 16700 kg
- nominal frequency: 65 Hz
- furnace crucible lining acid
- melting rate reference to 100 % nominal rating* 1.525 kg/h
- corresponding to a melting time for 16000 kg of 632 min
- corresponding energy consumption in continuous melting operation
- system side: 655 kWh/t
- furnace side: 610 kWh/t
- max. superheating capacity with filled crucible and a superheating by 100°C: 27.000 kg/h
- corresponding to a temperature rising speed of 2,8 K/min
- furnace heat losses with closed cover: 230 kW
- additional furnace heat losses with open cover and skimmed bath: 830 kW
- above temperature-dependent data are to be understood for a pouring temperature of 1500 °C
- bath diameter: 1310 mm
- bath depth at a furnace contents of 16700 kg: 1880 mm
- inside crucible depth: 2198 mm
- nominal wall thickness (ceramic material and insulation). 140 mm
- required ramming mix: approx. 4200 kg
- medium frequency induction melting system for melting, superheating and holding of iron alloys
- envisaged mode of operation: 1, 2 or 3 shift
- tapping temperature: 1500°C
- the mentioned production and performance data of the system refer to nominal
voltage of the supply mains as well as to a thoroughly heated crucible - they are to be understood for a melting-down of each melt charge up to nominal capacity of the furnace with minimum piece size of the charge material of 50 mm edge length (resp. grain size)
- when melting a high portion of fines of the charge material, e.g. 100 %
chips and/or 100 % granulates, the special mode of melting calls for the observance of the "Influence of the molten initial filling on the melting rate
- please also have a look at the PDF document of this plant
Automatic translation
Auction details
- Auction name
- Closure of a Foundry
- lot no.
- 30
- Documents
- Spec. Auction Terms
- Inspection
-
Tuesday, 20/02/2024, from 10:00 to 14:00
267 01 Králův Dvůr, Czech Republic
- address on request -
Viewing by prior appointment only!
- Pick up
-
Monday, 11/03/2024 to
Friday, 15/03/2024, from 08:00 to 16:00
