Wood Planers

23
Used planing machines from top manufacturers with various configurations
Categories
Reset filters Show items
Show on map view

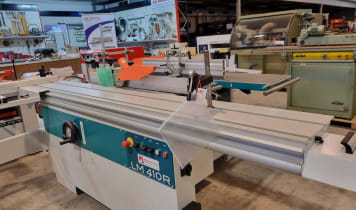

GRIGGIO LM410 R Combinada Universal
shape
MARBA Moulding machine
shape
Play
Spain, 08670 Navas

MARBA Moulding machine

WEINIG & SCM Comb. Window Production System incl. Window Handle Drilling Machine
shape
Play
SICAR V5220 Moulder/four-sided machine
shape
HOLZMANN AHM 530P surface planer
shape
Romania, 725700 Vatra Dornei

HOLZMANN AHM 530P surface planer

ARBOR 5 Times Combined Machine
shape
Play
STETON R200 Moulding Machine
shape
Play
ROJEK INDUSTRY RFS 410 Surface Planer
shape
L'INVICTA PAT51 Planing Machine
shape
COMA 4000 X 2270 3-Times Combined Machine
shape
CASADEI R51h3 thicknessing bench
shape
Netherlands, 5121EG Rijen

CASADEI R51h3 thicknessing bench

ANETO 3-Times Combined Machine
shape
CLARAMUNT N5 Surface Planer
shape
Play
OKOMA thicknessing bench
shape
Netherlands, 7468 DC Enter

OKOMA thicknessing bench

LENCO 3-Times Combined Machine
shape
3-Times Combined Machine
shape
Spain, 08670 Navas

3-Times Combined Machine

LUREM L51 Planing Machine
shape
Netherlands, 7468 DC Enter

LUREM L51 Planing Machine

VEBA F400 vlakbank
shape
Netherlands, 7468 DC Enter

VEBA F400 vlakbank

ABH Chico flatbed
shape
Netherlands, 7468 DC Enter

ABH Chico flatbed

WADKIN BFT 12 planer
shape
Netherlands, 7468 DC Enter

WADKIN BFT 12 planer

LOGOSOL DH410 (2) MP200EH7S-V Duo Planer
shape
Romania, 110024 Pitești, Arges

LOGOSOL DH410 (2) MP200EH7S-V Duo Planer

TOS SVITAVY MASTER FWP22 Four side planer
shape
Reserved
WEINING QUATOMAT 18 4-sided corroding machine
shape

ELU MFF 80 Electric hand planing machine
shape
Germany, 33397 Rietberg

ELU MFF 80 Electric hand planing machine

Surface planer
shape
Germany, 39387 Oschersleben

Surface planer

Portable Surface Planer
shape
Spain, 46200 Paiporta - Valencia

Portable Surface Planer

Lot Special Machine & Tool Wood plane
shape
Germany, 33397 Rietberg

Lot Special Machine & Tool Wood plane

Edge Planer
shape
Italy, 80040 Poggiomarino

Edge Planer

Many machines are used in the window-making technology, such as planing and tenon machines, moulders and window manufacturing machines. The last ones are actually entire production lines that consist of many interlinked single machines. Big multilateral planing machines and moulders with CNC controlled axes can be part of such production lines. Significantly smaller machines such as hand planes, surface planers and thicknessers, as well as tenon machines, dominate in the handicraft production. At Surplex you will find used machines of all sizes for dressing, joining, planing and profiling, including surface planers and thicknessers from SCM or WEINIG, as well as other planing machines - also modern models!

Planing is a process whereby the outer layers of a solid material are gradually worn down or chipped away to create a new surface or a workpiece with the highest level of precision and dimensional accuracy. Planers enable tolerances that are exact down to a tenth of a millimetre. Only core wood materials can be planed. Boards, beams and solid wood, at best still glued wood constructions, can be machined with a planing machine.

Chipboard and similar materials, however, are unsuitable for planer machines, but seeing as these materials are generally produced to the size required from the outset, this is hardly an inconvenience.

The wood planer is one of the oldest tools in the field of woodworking. It primarily consists of a wide blade which is guided along the grain of a given piece of wood.

The most common types of hand-held planers to be found feature a rigid blade. Electric wood planers, on the other hand, operate using a rotating planing roller that is fitted with at least two blades and can rapidly plane off excess surface material until the workpiece has attained the desired shape.

Planing achieves three things: first, it takes off the outer layers of a roughly-sawn workpiece down to the nearest tenth of a millimetre. Second, it straightens out the surface and balances out minor radii and arcs. And finally, planing creates a smooth surface entirely free of splinters and chips. This means the workpiece is thoroughly prepared for further processes, such as coating or veneering.

Mills are the next step on from planers and both variants are used in close conjunction in woodworking processes.

Window-making poses many challenges to any woodworker. Nowadays, windows must meet a range of strict requirements concerning precision and heat insulation. Wood is ideal in window-making since it features outstanding static properties and provides acceptable levels of heat insulation. However, wooden windows, of course, feature a number of other materials, not least the glass, rubber seals, metal fittings and lock mechanisms (as well as the frame that holds them all together). It must be ensured that the frame does not experience any major shape distortion after assembly otherwise the window will immediately lose a great deal of its functionality: it will no longer close properly, will let in cold air, or will always be getting stuck.

The wood chosen should thus be suitable and capable of being machined very precisely. The woodworking industry has developed a range window-making machines which are, to some extent, related to wood planer machines, but are based on different design principles.

In addition to frame presses, edge presses, and sawing/milling machines, the following types of equipment have been developed for windows and planing:

  • Surfacing planers
  • Thicknessing planers
  • Combination planers
  • Tenoners
  • Window construction machines
  • Chamfering planers

Surfacing planers


These surafce planers are stationary machines with a wide planing table. They are designed with simplicity in mind: they primarily comprise a steel table in the middle of which is a rotating planing roller arranged cross-wise. The workpiece is pushed across the table while the rolling planer does its job by removing a consistent layer of wood from the surface.

The blade roller in a surfacing planer can be adjusted as needed, which means that it can be moved down towards the work table to a defined height and then brought back. Creating a wooden workpiece with a specific thickness requires use of this setting.

Thicknessing planers


Thicknessing machines are the next step in the development of surfacing planers. If the workpiece has already been sufficiently smoothed and parallelised on the surfacing planer, it can be machined to the tenth of a millimetre on the thicknesser.

Thicknessing planers feature a base frame which contains the work table and integrated thicknessing blade. The thicknessing machine enables adjustments to be made to the whole work table instead of just the rolling planer. The frame and planing table together are used to determine the thickness of the entire workpiece.

Combination planers


Combination planers, or combined surfacing/thicknessing planers, can work on all sides of a workpiece using parallelisation and smoothing techniques to remove outer layers until the workpiece has reached the desired thickness. Combination devices are very popular as they are space-saving and work very efficiently.

Chamfering planers


Chamfering is comparable to ‘vertical planing’. Instead of a horizontal planing roller, chamfering machines use a vertical cutting roller. However, it is not freely movable as in a table mill. The chamfering machine uses a continuous stop onto which the workpiece can be securely attached.

The advantage of a chamfering machine is that the cutting roller is interchangeable, which makes it possible to create radial or layered chamfers within the workpiece edge.

Tenoners


The best way of joining heavy wooden beams is to use a mortise and tenon joint. These are precisely manufactured joints used in pre-prepared blind- and through holes. The machines used to create tenon joints are called tenoners and they primarily consist of a chamfering planer and a small circular saw. The cross-sections of tenon joints are relatively small, which means that tenoners are equally compact devices.

Window-making machines


A window-making machine is a special form of chamfering machine and planer which works on profiled wood. It smooths, polishes, cuts, mills and places grooves in this wood and then mitre cuts it to the desired length. Window-making machines require a range of processing stations to achieve these tasks, but once equipped, slats of wood can be machined on all sides in just one work cycle.

The machines are intended for large series and can thus maintain consistent precision across many workpieces. Once processed on a window-making machine, the window is mounted to the bracket device and firmly attached together in the frame press.

There is hardly a more robust and rigid machine in the field of woodworking than the wood planer. Its simple design and heavy-duty construction means that even very old machines of this type can still be put to good use.

The major weak-point is the motor, which requires occasional overhauling and parts replacement. Height guidance can also wear out over time, as can the planing roller bearings, but replacements are usually easy to source. Apart from these aspects, second-hand planing machines are a safe bet, especially if the buyer is prepared to disassemble, clean and overhaul them.

Finding suitable planers for sale from the second-hand market is thus an easy task for carpenters, joineries and interior furnishers/decorators. Those looking for a planer for sale will find a wide selection of technically simple machines that are affordable – even those bearing badges from major brands.

Of course, when it comes to the more complex variants, such as electric planers for sale, maintenance work becomes more demanding: a window-making machine capable of multi-side machining in a single work cycle will require more maintenance than a hand-held planer. Nevertheless, used window machines from brand-name manufacturers have traditionally been made to exacting standards and the high quality of these machines is still apparent many years down the line.

Popular manufacturers of planers and window-making machines include:


Planing machines as well as window construction technology from these manufacturers can always be recommended in the used state. The machines convince by high-quality materials and components which allow a long running time. In addition, most of them also come with an extensive after-sale service, so there will always be available a contact with your used planer if the machine should fail or needs to be technically upgraded.

High-quality used planing & windowing machines from these and other manufacturers are often found in our numerous industrial auctions. However, the product offer is very dynamic, so it is worth looking also at our used machinery marketplace to avoid missing an interesting offer.
