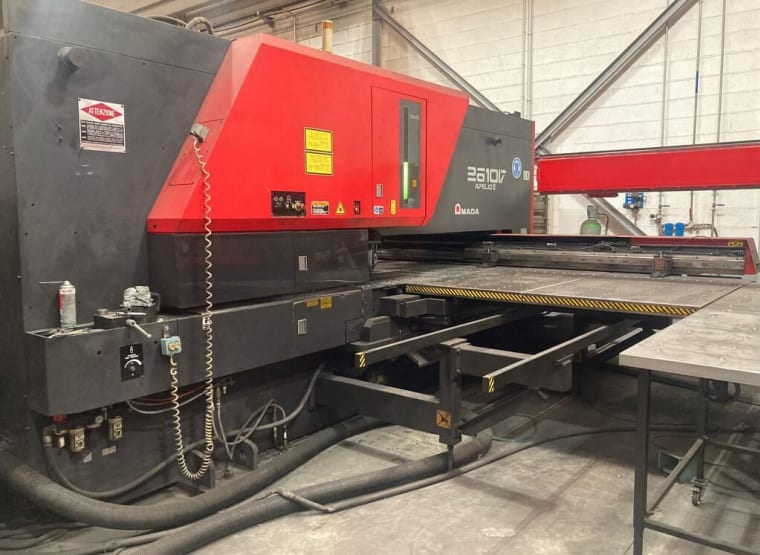

AMADA AP3-2610V Combined Laser Punching Machine + Automatization PR UL 300 AP

AMADA AP3-2610V Combined Laser Punching Machine + Automatization PR UL 300 AP
Name
AMADA AP3-2610V Combined Laser Punching Machine + Automatization PR UL 300 AP
Item number
785168
Manufacturer
AMADA
Model / Type
AP3-2610V
Videos
Video 1
Year of manufacture
1999
Item available from
Immediately
Item condition
Location
Spain, 08295 Sant Vicenç de Castellet
Dismantling & loading costs (binding)
2,000.00 €
Shipping costs
not included
Delivery terms
FCA Sant Vicenç de Castellet, loaded on truck
Payment terms
100% payment prior to collection
laser capacity
2 kW
control
FANUC AF2000C
total power requirement
53 kW
weight approx.
20,000 kg
Approx. Onsite Dimension. (l x w x h)
8,320 x 4,203 x 2,773 mm
   Serial Number: 32510005
Technical Data Laser:
  • Co2 laser
  • Control: FANUC AF2000C
  • Power: 2kw

Technical data Punching machine:

  • Working dimensions:
    • 1500 x 2500 mm without repositioning
    • 1500 x 5000 mm with 1 repositioning.
  • Force: 196 KN
  • Power: 53kva
  • Max. material weight: 280 kg
  • Max. material thickness:  6,4 mm
  • Tool stations: 31 (tooling not included)
  • Max. tool diameter: 88,9 mm
  • Tool change time: 1,5 sec.

Automatization system Included

  • Serial Number: 835
  • Model: PR UL 300   AP
  • YOM: 2004
  • Capacity: 3000kg
  • Power: 5,5kw
  • Stacking Area. 3 400 x 1 400 mm
  • CE standard
Note: Machine was dismantled by AMADA and now  is stored
