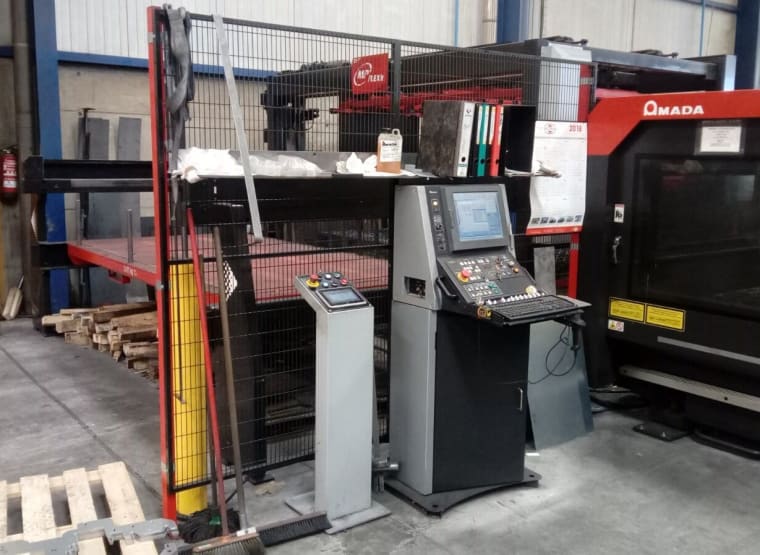

AMADA FO MII 3015 NT Laser Cutting Machine + MP Flexit 3015 Loading and Unloading Device

AMADA FO MII 3015 NT Laser Cutting Machine + MP Flexit 3015 Loading and Unloading Device
Name
AMADA FO MII 3015 NT Laser Cutting Machine + MP Flexit 3015 Loading and Unloading Device
Item number
784802
Manufacturer
AMADA
Model / Type
FO MII 3015 NT
Year of manufacture
2013
Item available from
Immediately
Item condition
Location
Spain, 26323 Hormilla (La Rioja)
Dismantling & loading costs (binding)
3,500.00 €
Shipping costs
not included
Delivery terms
FCA Hormilla (La Rioja), loaded on truck
Payment terms
100% payment prior to collection
laser capacity
4 kW
operating hours of laser
35,460 h
total power requirement
4 kW
weight approx.
15,500 kg
Approx. Onsite Dimension. (l x w x h)
10,200 x 2,696 x 2,341 mm

Serial Number: 097

Working details:

Working Area:

  • X: 3070
  • Y: 1550 mm
Axis displacement
X: 3420
Y: 1550
Z: 200
  • Cutting speed: X,Y: from 0 to 20 mt/min
  • Max. weight on the table: 840 kg
  • Assist gas control: Automatic
  • Max. working height: 840 mm
  • Weight of machine: Approx. 12.000 kg (excl. dust collector, cooler and changeoderver)
  • Power requirement: AC 200/220V ±10% 50/60Hz 27 Kva (excl. dust collector, cooler and pallet changer)

Laser

  • Model: AF 4000 i-B
  • Maximum Power 4,000w
  • Frequency: 5 to 2000hz
  • Laser Type: Co2
  • Circular Polarisation
  • Laser gas consumption Approx. 10 lit./min.
  • Cooling water flow 160 lit./min.
  • Power requirement AC 200/220V ±10% 50/60Hz 55kVA
  • Weight of unit Approx. 1,300kg

Cutting specifications:

  • Iron: 22 mm approx
  • Stainless: 12 mm approx
  • Aluminium: 10 mm approx

MP FLEXIT AUTOMATION  Model MP Flexit 3015

Serial Number: 2413
Year of Manufacture 2012

Functions:

  • Loading of sheet metal blanks.
  • Unloading of sheets with micro-joints.
  • Cutting pallet changer.
  • Min. Laser Cutting Time 69s.
  • Pallet changeover time (as preparation of the next sheet) 30s


Unit Load:

  • Pallets of Raw Material: 1
  • Max. Plate Load (kg) 3000
  • Max. Stacking Height (mm) 400
  • Max. Plate Size (mm) 3070 x 1550
  • Min. Plate Size (mm) 2000 x 1000
  • Max. Plate Weight (kg) 930
  • Separating Magnets 3
  • Number of suction cups 55


Unloading Unit:

  • Unloading Pallets: 1
  • Max. Plate Load (kg) 3000
  • Max. Stacking Height (mm) 300
  • Number of Forks 41
Note:
Tooling not included
Dismantled by Amada and stored
