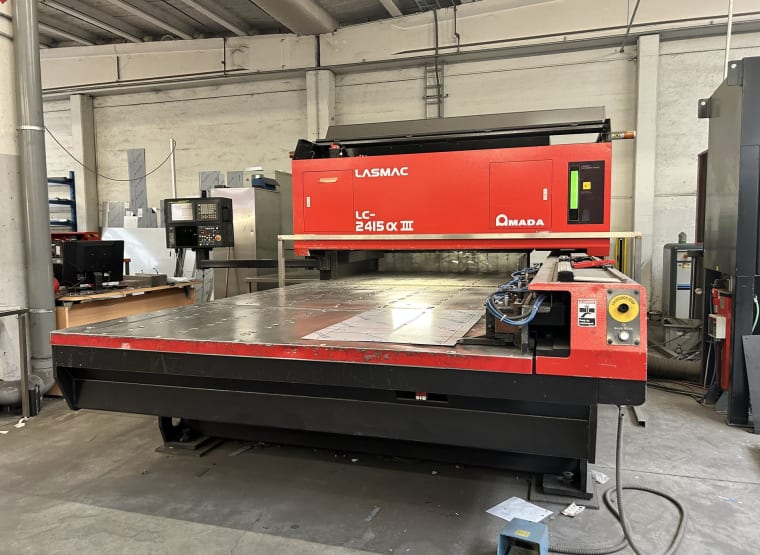

AMADA LC-2415 α III Laser Cutting Machine

AMADA LC-2415 α III Laser Cutting Machine
Top lot
lot no. 5
Closes in 1d 4h 24/01/24 14:04
30,000 € Starting bid
3 watchers
Log in to bid
Use bidding agent
+ auction fee & VAT
AMADA LC-2415 α III Laser Cutting Machine
Closes in 1d 4h
Closing time
30,000 €
Starting bid
Name
AMADA LC-2415 α III Laser Cutting Machine
Item number
880954
Manufacturer
AMADA
Model / Type
LC-2415 α III
Documents
BED_LC-2415_Alpha_III_NL.pdf
Videos
Video 1
Year of manufacture
2001
Item available from
March 2024
Item condition
Location
Belgium, 8520 Kuurne
Buyer’s premium
18 %
Dismantling & loading costs (binding)
12,500.00 €
Total Price
plus VAT
Shipping costs
not included
Delivery terms
FCA Kuurne, loaded on truck
Payment terms
100% payment prior to collection
tax / deposit
In the case of a cross-border supply, the amount of tax due is initially retained by the deposit shown on the invoice.
Security deposit
This auction requires the deposit of a credit card.
Read off operating hours
6,000 h
control
FANUC FS-160iLA
weight approx.
10,000 kg
Approx. Onsite Dimension. (l x w x h)
2,500 x 5,800 x 2,100 mm

Machine Specifications:

  • Max. Sheet Dimensions: 5040 x 1550 mm
  • Max. Sheet Weight: 330 kg
  • Max. Slide Stroke (X): 2520 mm
  • Max. Stroke of Laser Head (Y-Axis): 1550 mm
  • Max. Stroke of Laser Head (Z-Axis): 300 mm
  • Max. Cutting Speed X and Y Axis: 20 m/min.
  • Speed Rapid Transport X: 80 m/min.
  • Speed Rapid Transport Y: 80 m/min.
  • Speed Rapid Transport Z: 60 m/min.
  • Positioning Accuracy: ± 0.01 mm/500 mm
  • Repeatability: ± 0.005 mm
  • Table Height: 820 mm
  • Part Door Dimensions: 550 x 1550 mm
  • Power Supply Voltage: 200 V (± 10 %) AC
  • Mains Frequency: 50/60 Hz (± 1 Hz)
  • Installed Power: 10 kVA, 3 phases
  • Compressed Air Supply (Cutting Gas): 1000 l/min.
  • Compressed Air Supply (No Cutting Gas): 250 l/min.
Dimensions (LxWxH): 2500 x 5654 x 2275 mm

Type Numerical Control:

  • FANUC FS-160iLA
  • Controlled Axes: X, Y, Z (3 axes controlled simultaneously)

  • Programming Method: 3.5" floppy disk or MDI (data manually entered)

  • Smallest Increment: 0.001 mm

  • Memory Capacity:: 320 m

  • I/O Connection: RS232C

  • Operating Temperature: 5°C to 35°C

    Filter dimensions: 700x1650x2100
    DONALSON dimensions: 1500x1300x2300.
    Excluding plate lift

Automatic translation
Auction name
Metalworking machinery and accessories - Benelux
lot no.
5
Documents
Spec. Auction Terms
Inspection
The exact location is available on request.
No fixed date. The items are in different locations (see item description).
Inspection by prior appointment only!
