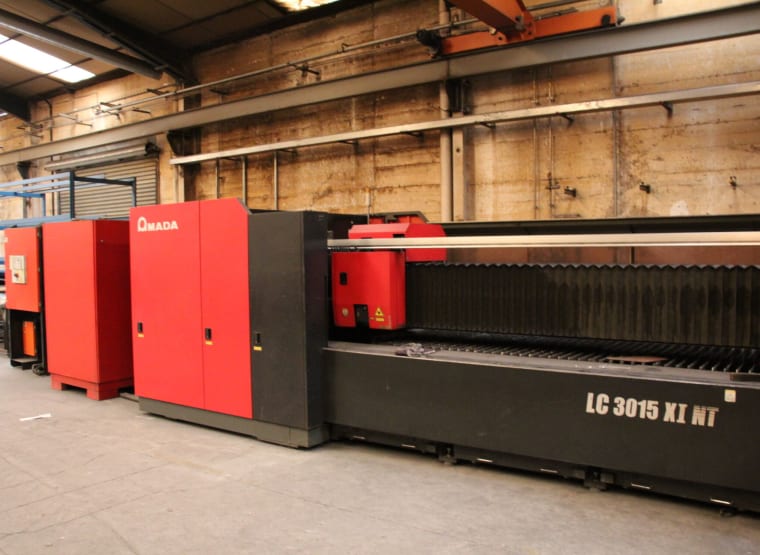

AMADA LC 3015 X INT Laser Cutting Machine

AMADA LC 3015 X INT Laser Cutting Machine
Tip
lot no. 102
Closes in 2h 25m 56s 23/01/24 12:40
25,500 € Starting bid
16 watchers
Log in to bid
Use bidding agent
+ auction fee & VAT
AMADA LC 3015 X INT Laser Cutting Machine
Closes in 2h 25m 56s
Closing time
25,500 €
Starting bid
Name
AMADA LC 3015 X INT Laser Cutting Machine
Item number
836125
Manufacturer
AMADA
Model / Type
LC 3015 X INT
Year of manufacture
2007
Item available from
Immediately
Item condition
Location
Spain, 17241 Girona
Buyer’s premium
18 %
Dismantling & loading costs (binding)
3,500.00 €
Total Price
plus VAT
Shipping costs
not included
Delivery terms
FCA Girona, loaded on truck
Payment terms
100% payment prior to collection
Security deposit
This auction requires the deposit of a credit card.
weight approx.
11,700 kg
Approx. Onsite Dimension. (l x w x h)
11,000 x 3,260 x 5,000 mm
  • Serial NUmber: 20510134
  • AMADA LC3015 X1NT Laser Cutting Machine (2007)
  • Working hours 62084 approx.
  • Power 4000 W
  • Type CO2-Laser
  • Longitudinal travel X-3100 mm
  • Transverse travel Y-1550 mm
  • Vertical travel Z-120 mm
  • Workpiece dimensions 3050x1525x119 mm
  • Maximum table weight 690 kg
  • Rapid traverse 85 mm/min
  • Rapid traverse 85 mm/min
  • Rapid traverse 60 mm/min
  • Maximum cutting thickness in steel 20 mm
  • Maximum cutting thickness in stainless steel 15 mm
  • Maximum cutting thickness in aluminium 12 mm
  • Total installed power 71 kVA
  •
  • HERDING DELTAComp 1500-6/9 filter (2006)
  • Filtered area 38,5 m2
  • Exhaust air 2000 m3/h
  • Maximum working temperature 50ºC
  •
  • RIEDEL PC 1001.1MS5.1 Chiller (2006)
  • Refrigerant R407C
  • Max. working pressure 25 bar
  • Filling weight 27 kg
Sheet metal loader LKI AS LUL 300 X1 (2007)
  • Pallet loader 8
This machines was dismantled by AMADA (2021) , and is stored as you can see from picture 12
