Item details
- Name

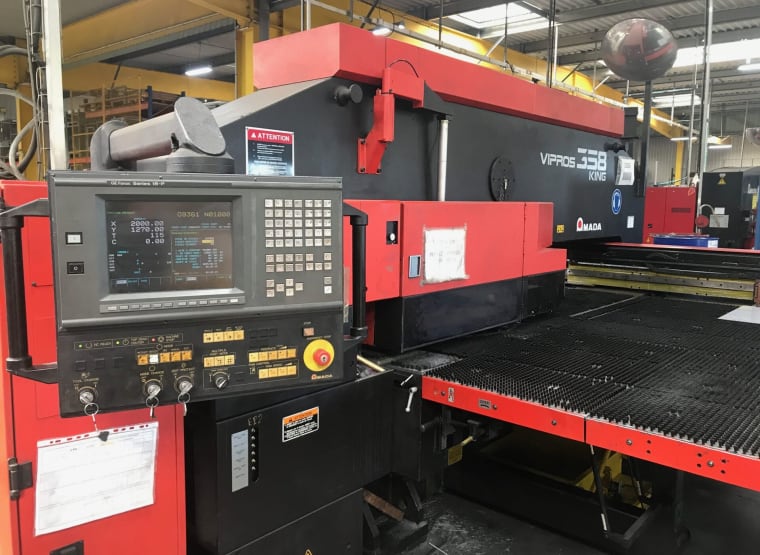

- AMADA Vipros 358 king Punching Machine
- Item number
- 870184
- Manufacturer
- AMADA
- Model / Type
- Vipros 358 king
- Year of manufacture
- 2002
- Item available from
- Immediately
- Item condition
- Location
-
France, 35490 Sens De Bretagne
- Show on map
- All items at this location
Costs and benefits
- 18 %
- 2,950.00 €
- Total Price
- plus VAT
- Shipping costs
- not included
- Delivery terms
- FCA Sens De Bretagne, loaded on truck
- Payment terms
- 100% payment prior to collection
Technical details
- weight approx.
- 16,000 kg
- Approx. Onsite Dimension. (l x w x h)
- 5,170 x 4,120 x 3,012 mm
Item description
Punching force: 30 T
Format with repositioning: 1270 x 4000 mm
Maximum sheet thickness: 3.2 mm
Maximum sheet weight: 50 kg
Table travel (Y): 1270 mm
Slide travel (X): 2000 mm
Punching accuracy: +/- 0.1
Maximum ram stroke: 40 mm
Maximum speed (X) : 80 m/min
Maximum speed (Y) : 80 m/min
Turret speed: 30 rpm
Installed power: 28 kV
Air consumption: 250 1/min
Air pressure: 5 bars
CNC : Fanuc Series 18-P
Controlled axes: 3 axes controlled simultaneously
Minimum increment: 0.01 mm; 0.01°
Format with repositioning: 1270 x 4000 mm
Maximum sheet thickness: 3.2 mm
Maximum sheet weight: 50 kg
Table travel (Y): 1270 mm
Slide travel (X): 2000 mm
Punching accuracy: +/- 0.1
Maximum ram stroke: 40 mm
Maximum speed (X) : 80 m/min
Maximum speed (Y) : 80 m/min
Turret speed: 30 rpm
Installed power: 28 kV
Air consumption: 250 1/min
Air pressure: 5 bars
CNC : Fanuc Series 18-P
Controlled axes: 3 axes controlled simultaneously
Minimum increment: 0.01 mm; 0.01°
