Item details
- Name

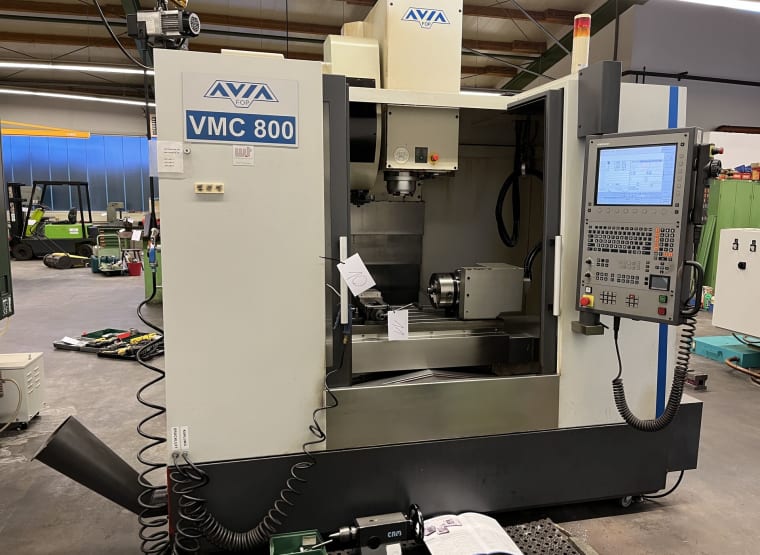

- AVIA VMC 800 CNC Vertical Machining Center
- Item number
- 881899
- Manufacturer
- AVIA
- Model / Type
- VMC 800
- Videos
-
Video 1 - Year of manufacture
- 2011
- Item available from
- immediately
- Item condition
- Location
-
Germany, 89150 Laichingen
- Show on map
- All items at this location
Costs and benefits
- 18 %
- 700.00 €
- Total Price
- plus VAT
- Shipping costs
- not included
- Delivery terms
- FCA Laichingen, loaded on truck
- Payment terms
- 100% payment prior to collection
Technical details
- Approx. Onsite Dimension. (l x w x h)
- 3,000 x 2,800 x 2,500 mm
- weight approx.
- 5,000 kg
Item description
Machine number: 72112
Control: HEIDENAHIN iTNC 530
Spindle:
Control: HEIDENAHIN iTNC 530
Spindle:
- Max. Spindle speed: 10000 rpm
- Tool holder: SK 40
- Tool positions: 24
- Tool change time: 2.8 s
- Max. Tool diameter: 80 mm
- Max. Tool weight: 7 kg
- Max. Tool length: 300 mm
- Travels:
- X-axis: 800 mm
- Y-axis: 540 mm
- Z-axis: 620 mm
- Feed speed (X-, Y- and Z-axis): 0 - 35000 mm/min
- Rapid traverse speed (X-, Y- and Z-axis): 35 m/min
- Positioning accuracy: +/- 0.005 mm
- Repeat accuracy: 0.005 mm
- Min/max. distance from the spindle nose to the table surface: 150/770 mm
- Table dimensions: 1000 x 540 mm
- With 5 grooves
- Attention: the machine vice shown in the photos is not included in the scope of delivery
- Incl. 4th axis (A) Diameter of the 4th axis: 200 mm
- Read operating hours: 16520 h
- Read spindle hours: 6636 h
- Operating voltage: 400 V
- Frequency: 50 Hz
- Rated current: 55 A
- Control voltage: 24 V
Automatic translation
