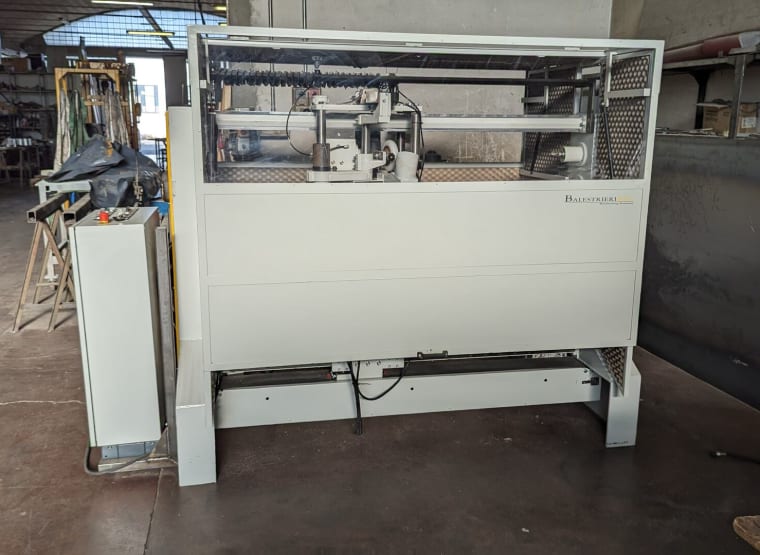

BALESTRIERI MATIC 120/4A Copying lathe with 4 spindles

BALESTRIERI MATIC 120/4A Copying lathe with 4 spindles
Name
BALESTRIERI MATIC 120/4A Copying lathe with 4 spindles
Item number
864305
Manufacturer
BALESTRIERI
Model / Type
MATIC 120/4A
Documents
TORNIO_MATIC_1204A-_MANUALE_DUSO_E_MANUTENZIONE.pdf
Videos
Video 1
Year of manufacture
2021
Item available from
immediately
Item condition
in working order
Location
Italy, region
Dismantling & loading costs (binding)
100.00 €
Shipping costs
not included
Delivery terms
FCA, loaded on truck
Payment terms
100% payment prior to collection
Approx. Onsite Dimension. (l x w x h)
2,350 x 1,400 x 1,900 mm
weight approx.
1,250 kg
4-spindle copying lathe with aluminium template

STANDARD EQUIPMENT
  • 4 spindles for simultaneous copying of 4 workpieces
  • Variable rotation with inverter
  • Spindle drive with bronze gears and worm gear
  • Centring devices for automatic workpiece positioning
  • Pneumatic clamps
  • Approach and moving away of cutter unit with pneumatic system
  • Cutter carriage feed on rectified guides and recirculating ball pads
  • Independent adjustment of cutter carriage feed and wood rotation
  • Machine and electrical system complying with EC regulations

TECHNICAL DATA
  • Max. turning length mm 1100
  • Max. turning diameter mm 150
  • Cutter motor power V 380 / 50 - Kw 4
  • Spindle rotation motor power V 380 / 50 - Kw 0,75
  • Cutter carriage feed motor power V 380 / 50 - Kw 0,55
  • Tool holder diameter mm 145
  • Tool diameter mm 35
  • Variable carriage feed speed mm/min 0 ÷ 600
  • Variable spindle rotation speed rpm 20 ÷ 50
  • Tool speed rpm 4500
  • The machine is already equipped with sanding unit with 4 horizontal belts and two motors of 0.75Kw each
