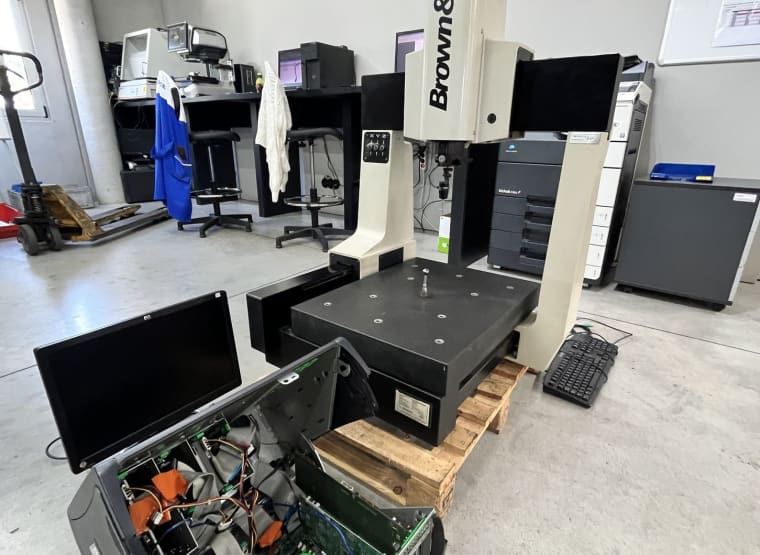

BROWN & SHARPE MVAL 343 Coordinate Measuring Machine

BROWN & SHARPE MVAL 343 Coordinate Measuring Machine
no. 0996-1016

Pre-Owned Certified B&S Microval 343 CMM Small CMM unit capable of fitting through standard door frame.
Granite table insert in cast body.
Steel Scales with Ribbon Encoders The CMM is operated by air, moved hand and has 3 axes locks.


• Software PC and Workstation
• 3- Axes & Probe Interface
• Probe System and styli kit
• Origin Sphere & Filter unit
• RENISHAW probe
• PC

CMM Type: Manual Bridge Model
Travel Range: X = 12” (300mm), Y = 16” (400mm) Z = 12” (300mm)
Footprint: W = 29” (737mm) L = 30” (762mm) H = 86” (2185mm)
Accuracy: Repeatability: 3μm Linear Accuracy (μm): 3.5 + 4L / 1000
Interface: IM USB Scale and Probe Interface Unit
Software: PCDMIS version 3.2.
