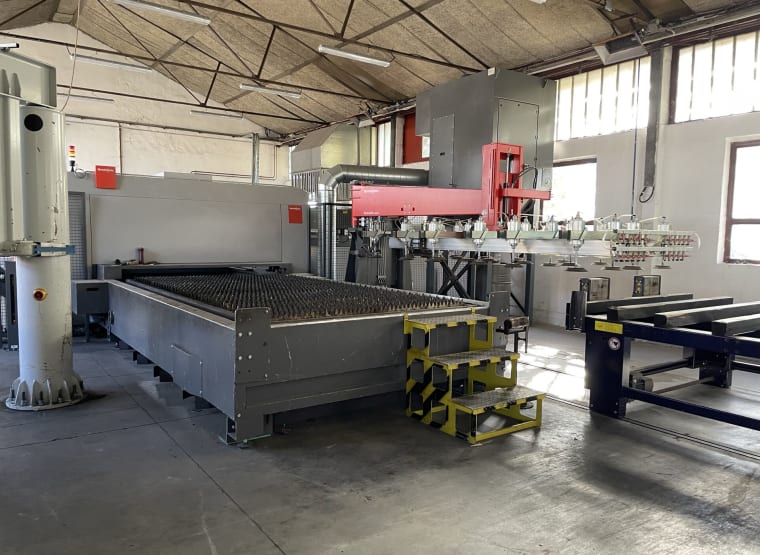

BYSTRONIC BySprint Pro 4020 CNC Laser Cutting Machine
Top lot
lot no. 20
69,000 €
1 Bid 35 watchers
Log in to bid
€
Use bidding agent
+ auction fee & VAT
Closes in 1d 1h
Closing time
69,000 €
Current highest bid
Item details
- Name
- BYSTRONIC BySprint Pro 4020 CNC Laser Cutting Machine
- Item number
- 782849
- Manufacturer
- BYSTRONIC
- Model / Type
- BySprint Pro 4020
- Documents
- Byloader_4020 TS.pdf BySprint Pro 4020_Datasheet_eng_Original_7117.pdf Laser_Sources_e.pdf
- Videos
-
Video 1 Video 2 Video 3 - Year of manufacture
- 2018
- Item available from
- immediately
- Item condition
- Location
-
Hungary, 4211 Ebes
- Show on map
- All items at this location
Costs and benefits
- 18 %
- 18,500.00 €
- Total Price
- plus VAT
- Shipping costs
- not included
- Delivery terms
- FCA Ebes, loaded on truck
- Payment terms
- 100% payment prior to collection
- tax / deposit
Technical details
- Read off operating hours
- 9,391 h
- table length
- 4,064 mm
- table width
- 2,000 mm
- laser capacity
- 6 kW
- control
- BYSTRONIC By Vision
- operating hours of laser
- 4,159 h
- total power requirement
- 78 kW
- weight approx.
- 15,000 kg
- Approx. Onsite Dimension. (l x w x h)
- 13,050 x 7,050 x 2,450 mm
Item description
- CNC Laser Cutting Machine 6kW
- serial number: 2321
- ByLaser 6000
- ByLoader 4020
- cutting time: approx. 4159 hrs.
- power on time: approx. 9391 hrs.
- nominal size of sheet: 4000 x 2000 mm
- working area: 4064 x 2032 mm
- Z-axis travel: 70 mm
- max. positioning speed parallel:
- X-axis: 100 m/min.
- Y-axis: 100 m/min.
- max. positioning speed simultaneous: 140 m/min.
- max workpiece weight: 1580 kg
- max. cutting thicknesses:
- steel O2: 25 mm
- steel N2: 12 mm
- stainless steel quality: 15 mm
- stainless steel plasma: 25 mm
- aluminium: 15 mm
- laser gas consumption:
- helium: 20 Nl/h
- nitrogen: 8 Nl/h
- carbon dioxide: 1.6 Nl/h
- guaranteed initial performance: 6000 W
- pulse frequency: 1 - 2500 Hz
- pulse width: 0.1 - 999 ms
- wavelength: 10.6 µm
- laser stimulation wear-free HF semiconductor activation
- dimensions: 2200 x 1100 x 1750 mm
- weight: 1900 kg
- sheet format: 4000 x 2000 mm
- cycle time loading and unloading: 45 s
- weight: 2100 kg
- max. sheet weight: 1580 kg
- number of suction pads: 20
- max. stacking weight of sheet table: 3000 kg
- max. stacking height of sheet metal table: 200 mm
- weight of fixed sheet metal table: 800 kg
- weight of mobile sheet metal table: 1000 kg
- includes:
- ABUS crane 1250 kg
- roller conveyor
- cooling unit
- machine is ready for transport!
- please also have a look at the videos and the PDF documents of this machine
