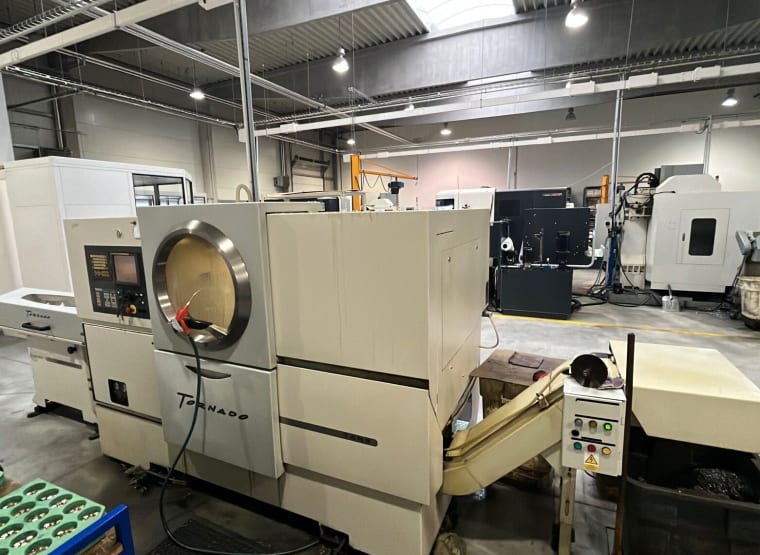

COLCHESTER 600 GROUP TORNADO T6MS Automatic CNC Lathe with counter spindle and bar feeder

• Maximum turning diameter: 220 mm
• Swing over bed: 440 mm

Movements:

• X-axis: 200 mm
• Z-axis: 450 mm
• A-axis: 450 mm

• rapid traverse in the X/Z/A axes: 25/30/30 m/min
• Maximum spindle speed: 6000 rpm
• spindle taper: A2-5
• spindle chuck size: 170 mm
• spindle bore: 64 mm
• distance between spindle axis and floor: 950 mm
• internal drawtube diameter: 54 mm
• internal spindle bearing diameter: 95 mm
• spindle motor power: 15 kW
• maximum sub spindle speed: 6000 rpm
• sub spindle bore: 55 mm
• sub spindle chuck size: ø 130 mm
• sub spindle collet size: 33 mm
• sub spindle drawtube diameter: 40 mm
• sub spindle drawtube length: 370 mm
• sub spindle motor power: 5.5 kW
• sub pture spindle torque: 45 Nm
• number of tool stations in the tool head: 12
• number of driven tool stations: 12
• tool head speed: 5000 rpm
• toolholder: VDI 30
• rotary tool shank size: 20×20 mm
• ball screw diameter in X,Z,A axis: 32 mm
• ball screw pitch in X/Z/A axis: 8/8/10 mm
• thrust in X/Z axis: 3.75/4.445 kN
• C-axis resolution: 0,001°
• B-axis resolution: 0,001°
• carriage inclination: 60°
• coolant tank capacity: 100 l
• coolant pump capacity (pressure 2.5 bar): 25 l/min
• power requirement: 28 kVA
• space requirement: 3,9 m2
• weight of machine approx. 4500 kg
