Item details
- Name

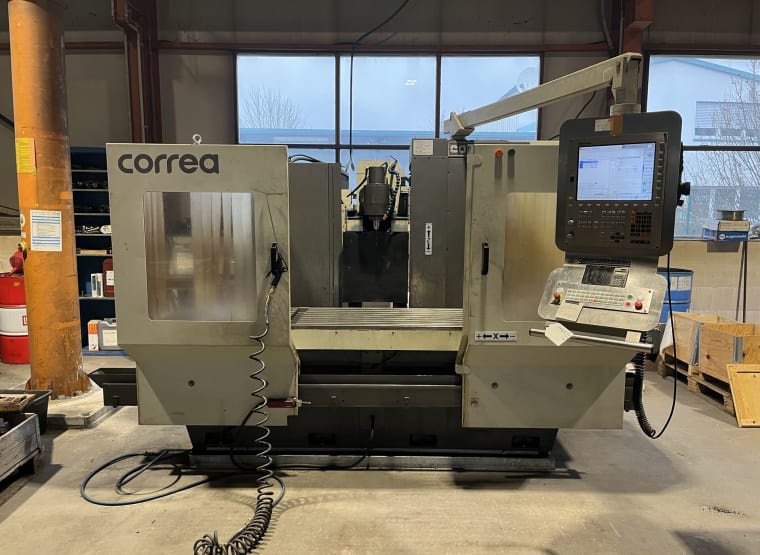

- CORREA A-10 CNC Bed Milling Machine
- Item number
- 882931
- Manufacturer
- CORREA
- Model / Type
- A-10
- Videos
-
Video 1 - Year of manufacture
- 1987/2016
- Item available from
- immediately
- Item condition
- Location
-
Germany, 73529 Schwäbisch Gmünd
- Show on map
- All items at this location
Costs and benefits
- 18 %
- 450.00 €
- Total Price
- plus VAT
- Shipping costs
- not included
- Delivery terms
- FCA Schwäbisch Gmünd, loaded on truck
- Payment terms
- 100% payment prior to collection
Technical details
- weight approx.
- 9,000 kg
- Approx. Onsite Dimension. (l x w x h)
- 3,800 x 3,400 x 2,300 mm
Item description
The machine was overhauled in 2016!
Travels:
Retrofitting:
transport width: standard truck
- Serial number: 9561808
- Control: HEIDENHAIN TNC 320
- Table dimensions: 1700 x 630 mm
- T-slots: 6 x 18 H8
Travels:
- Length: 1300 mm
- Transverse: 630 mm
- Vertical: 630 mm
- Spindle mount: ISO-50
- Front bearing diameter: 90 mm
- Number of speeds: 17
- Speed range: max. 3250 rpm
- Rapid traverse: max. 8000 mm/min
Retrofitting:
- Milling head repair: replacing the pinions, gears and bearings
- Replacing the X, Y and Z axis bearings
- Preloading of the ball screws X, Y and Z
- Ram repair: grinding and adjusting the guides. Replacement of bearings and defective parts
- Saddle: Repair and grinding of the Turcite/Biplast guides
- Bed: Grinding the Turcite guides of the table
- Sanding and painting of all machine parts
- Repair/replacement of the telescopic covers (including installation of new wipers)
- Replacement of damaged parts of the cladding including cleaning, sanding and painting
- Dismantling, cleaning, revision and reassembly of the entire electrical cabinet, the motors, drives including the electronic handwheel HR510
transport width: standard truck
