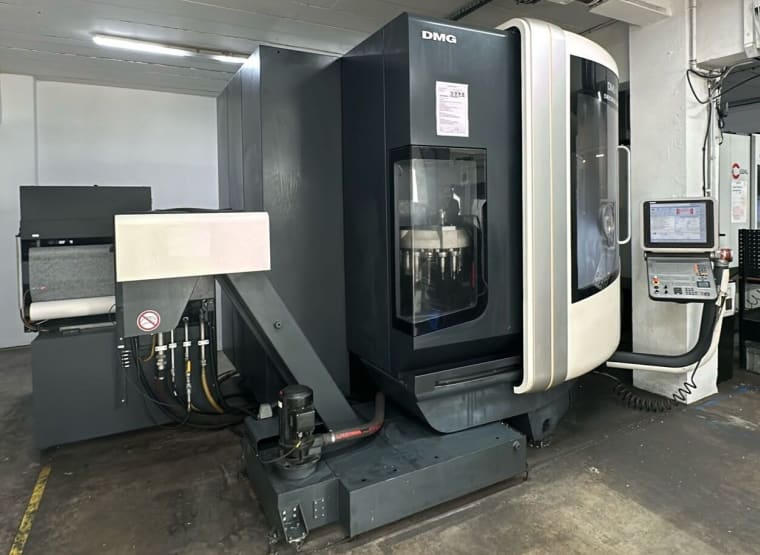

DMG DMU 60 eVo Linear 5 Axis Universal Machining Centre

DMG MORI DMU 60 eVo Linear

Technical Information

Feed rate longitudinal/transverse/vertical – 80,000/80,000/80,000 mm/min

Rapid traverse longitudinal/transverse/vertical – 80/80/80 m/min

Hours ran - 22417 (21/11/2023)

Longitudinal – 600mm

Cross – 500mm

Vertical – 500mm

Dynamic package DMU 60 eVo Linear

Linear drive X/Y axis 80 m/min

Rapid feed rate 80m/min

Acceleration X/Y/Z 10m/s²

Active chiller for main spindle, linear drives and table

Spindle speed up to 18,000 rpm HSK-A63

Spindle speed up to 18,000 rpm HSK-A63

AC-Motor spindle vertical, digital controlled

Lubrication – oil-air lubrication

Spindle cooling – circulating water cooling.

Adaption of spindle and tool magazine (differently from standard)

Drive power 9100% DC) – 25kW

Drive power (40% DC) – 35kW

Torque (100% DC) – 87Nm

Torque (40% DC) – 130Nm

NC Swivel rotary table

NC Swivel Rotary Table

Direct measuring systems

Includes cooling of the table

Table surface – 600mm x 500mm

Centre bore – 30mm H6

Maximum load on the table –  400 kg

Slot width – 14mm

Number of slots –  7

Distance between slots –  63 mm

Rotation speed max. 4. Axis –  60 rpm

4 axis swiveling range – 360x 0.001 degree

5 axis swiveling range -5/+110 x 0.001 degree

Rotational speed 5 axis –  60 rpm

Please note tooling not included. 10 off tool holders are included.

Important! The machine must be picked up by the customer between February 5-9, 2024! Otherwise, the machine may need to be relocated and stored. Customer is liable for these costs!
