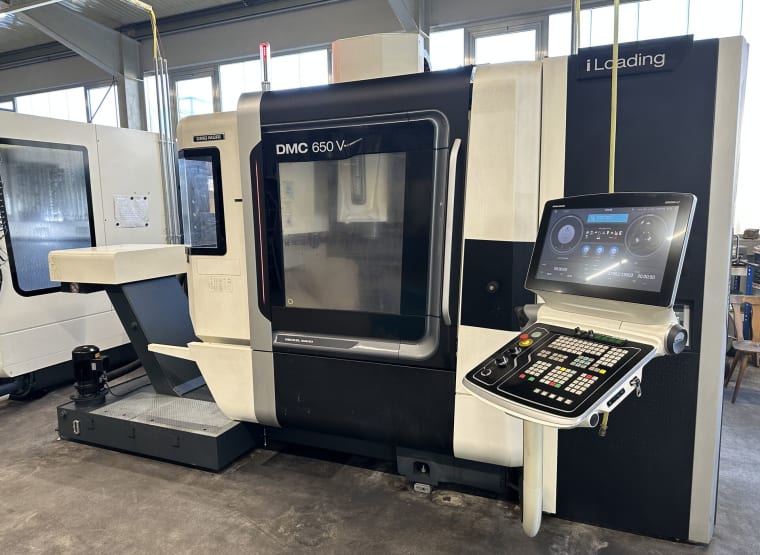

DMG MORI DMC 650 V CNC Vertical Machining Centre
Top lot
lot no. 100
35,900 €
60 watchers
Log in to bid
€
Use bidding agent
+ auction fee & VAT
01/02/24 11:39
Closing time
35,900 €
Starting bid
Item details
- Name
- DMG MORI DMC 650 V CNC Vertical Machining Centre
- Item number
- 864143
- Manufacturer
- DMG MORI
- Model / Type
- DMC 650 V
- Videos
-
Video 1 - Year of manufacture
- 2017
- Item available from
- immediately
- Item condition
- Location
-
Germany, 73529 Schwäbisch Gmünd
- Show on map
- All items at this location
Costs and benefits
- 18 %
- 1,500.00 €
- Total Price
- plus VAT
- Shipping costs
- not included
- Delivery terms
- FCA Schwäbisch Gmünd, loaded on truck
- Payment terms
- 100% payment prior to collection
Technical details
- z-motion
- 475 mm
- x-motion
- 650 mm
- y-motion
- 520 mm
- control
- SIEMENS CELOS ERGOLINE
- table surface area l x w
- 960 x 570 mm
- taper
- SK 40
- toolchanger positions
- 20
- turning speed range
- 12,000 rpm
- feed range
- 0 - 42000 mm/min
- rapid motion
- 42 m/min
- weight approx.
- 6,000 kg
- Approx. Onsite Dimension. (l x w x h)
- 4,600 x 4,000 x 2,600 mm
Item description
- serial no.: 14565616324
- operating voltage: 400 V
- frequency: 50 HZ
- connected load: 19 kVA
- nominal current 35 A
- internal coolant unit, 40 bar
- motor drive power 40% DC: 14,5 kW, nominal power 100%: 11,5 kW
- max. spindle torque value 40% DC: 121 Nm, nominal torque value 100% DC: 84 Nm
- path measuring system resolution X, Y and Z-axis: 0,01 µm
- distance between T-slots: 100 mm
- number of clamping slots/size: 4 / 14H12
- slot/size: 1 / 14H7
- max. table load: 800 kg
- delivery height (floor-upper edge of table): 800 mm
- Incl. loading unit of manufacturer DECKEL MAHO, type iLoading with one loading robot of manufacturer KUKA
- attention: the loading unit can be disconnected in the control, which thus makes a separation of both systems possible and they can be used separately !!!
- also inclusive chip conveyor and coolant unit of manufacturer KNOLL
- read off spindle hours: 22322 h
- attention: without clamping element on table
- transport width: 2300 mm
- see also video
Automatic translation
Auction details
- lot no.
- 100
- Documents
- Spec. Auction Terms
- Inspection
-
The exact location is available on request.
73235 Weilheim Teck / 73529 Schwäbisch Gmünd, Germany
- address on request -
Viewing by prior appointment only!
- Pick up
-
Monday, 12/02/2024 to
Friday, 16/02/2024, from 08:00 to 16:00
Monday, 19/02/2024 to
Wednesday, 21/02/2024, from 08:00 to 16:00
