DÖRRIES CONTUMAT VCE 2400/200 SM Vertical Lathe

DÖRRIES CONTUMAT VCE 2400/200 SM Vertical Lathe
Name
DÖRRIES CONTUMAT VCE 2400/200 SM Vertical Lathe
Item number
887648
Manufacturer
DÖRRIES SCHARMANN
Model / Type
VCE 2400/200 SM
Documents
VCE_2400_200_V800289.pdf
Year of manufacture
2008
Item available from
immediately
Item condition
good, under power
Location
Germany, 01665 Klipphausen
Shipping costs
not included
Delivery terms
EXW Klipphausen, ex foundation, unpackaged
Payment terms
100% payment prior to collection
turning height
2,445 mm
swing diameter
2,400 mm
control
SIEMENS Sinumerik 840 D
feed range
0- 18000 mm/min
total power requirement
100 kW
weight approx.
75,000 kg
Approx. Onsite Dimension. (l x w x h)
10,000 x 5,500 x 7,100 mm

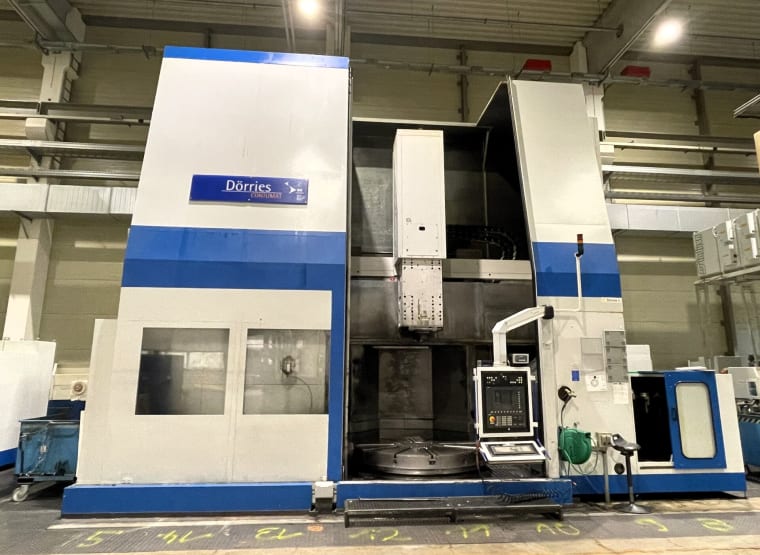

Dörries single-column vertical lathe with 2.4 m swing diameter.

Control and machine number
  • SIEMENS Sinumerik 840 D control system
  • Machine number: V-800289

Geometric main dimensions

  • Machine table diameter: 2000 mm
  • Maximum table load: 17 tonnes
  • Rotation diameter: 2400 mm
  • Working height: 2445 mm
  • Cross-section of ram slide: 250 x 250 mm (minimum dipping diameter: 380 mm)
  • Travelling distance of ram slide: 1500 mm
  • Cross beam support Travelling distance: ± 1350 mm
  • Crossbeam travel (100 mm steps): 1000 mm
  • Tool change path: 720 mm
Machine drive
  • Drive power main drive: 100 kW
  • Speed range in 2 gear stages: 1.3 - 250 rpm
Feed drives
  • Horizontal and vertical cross beam support: 0 - 18000 mm/min
  • Cross beam adjustment speed: 400 mm/min
Milling drive
  • Milling drive power: 37 kW
  • Speed range in 2 gear stages: 8 - 3000 rpm
Tool system
  • Tool holder: Capto C6
  • Milling tool system: Capto C8
General data
  • Tool change turret with 72 positions
  • Head changer
  • BRANKAMP monitoring
  • REXROTH hydraulic unit
  • Chip conveyor

Please take a look at the technical data and layout plans in the PDF file.
