DÖRRIES CONTUMAT VCE 2400/220 MC Vertical Lathe

DÖRRIES CONTUMAT VCE 2400/220 MC Vertical Lathe
Name
DÖRRIES CONTUMAT VCE 2400/220 MC Vertical Lathe
Item number
887645
Manufacturer
DÖRRIES SCHARMANN
Model / Type
VCE 2400/220 MC
Documents
DS_VCE2400_220_MC_V-800292_small.pdf
Year of manufacture
2008
Item available from
immediately
Item condition
good, under power
Location
Germany, 01665 Klipphausen
Shipping costs
not included
Delivery terms
EXW Klipphausen, ex foundation, unpackaged
Payment terms
100% payment prior to collection
turning height
2,145 mm
swing diameter
2,400 mm
control
SIEMENS Sinumerik 840 D
feed range
0- 18000 mm/min
total power requirement
100 kW
weight approx.
75,000 kg
Approx. Onsite Dimension. (l x w x h)
10,000 x 5,500 x 7,100 mm

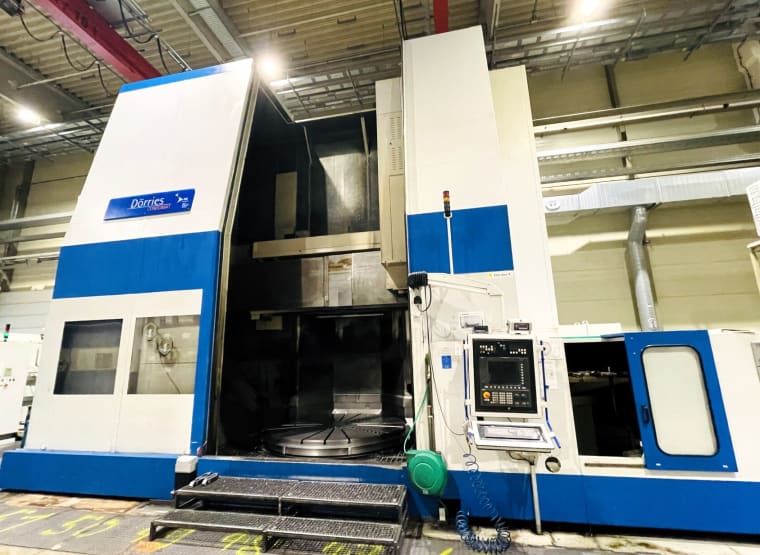

Dörries single-column vertical lathe with 2.4 m swing diameter for turning, drilling and milling operations. Components can be completely machined in a single clamping operation.

Control system and Machine number
  • Control: SIEMENS Sinumerik 840 D
  • Machine number: V-800292
Geometric main dimensions
  • Machine table diameter: 2200 mm
  • Maximum table load: 17 tonnes
  • Rotation diameter: 2400 mm
  • Working height: 2145 mm
  • Cross-section of ram slide: 250 x 250 mm (minimum dipping diameter: 380 mm)
  • Travelling distance of ram slide: 1500 mm
  • Cross beam support Travelling distance: ± 1350 mm
  • Tool change path: 720 mm
Machine drive
  • Drive power main drive: 100 kW
  • Speed range in 2 gear stages: 1.3 - 250 rpm
Feed drives
  • Horizontal and vertical cross beam support: 0 - 18000 mm/min
  • Cross beam adjustment speed: 400 mm/min
Milling drive
  • Milling drive power: 37 kW
  • Speed range in 2 gear stages: 8 - 3000 rpm
Tool system
  • Tool holder: Capto C6
  • Milling tool system: Capto C8
General data
  • Tool change turret with 72 positions
  • Head changer
  • BRANKAMP monitoring
  • REXROTH hydraulic unit
  • Chip conveyor

Please take a look at the technical data and layout plans in the PDF file.
