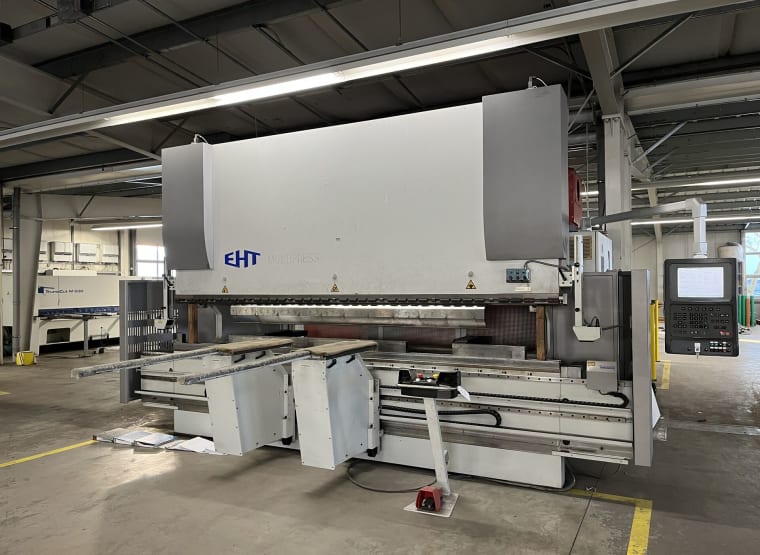

EHT MULTIPRESS 175/40 CNC press brake

Machine number: 211809
Operating voltage: 3 x 400 V
Frequency: 50 Hz
Control voltage: 24 V
Rated current: 80 A
Connection: 27 kW
Control system: CYBELEC
Working length: 4050 mm
Distance between the machine columns: 3550 mm
Column projection: 405 mm
Ram stroke: 400 mm
Distance table to ram: min. 320 mm max. 720 mm
Max. Pressing force: 1750 kN
Stroke speeds:
Idle run: max. 140 mm/s
Pressing cycle: max. 10 mm/s
Retraction: max. 180 mm/s
Safety data:
Safety distance: min. 190 mm
Permissible overtravel time: max. 119 ms
Permissible overtravel: max. 8 mm
Pressure in the hydraulic system: max. 293 bar
Pressure in the pneumatic system: 4.5 - 6 bar
Capacity of the oil tank: 350 L
Rear stop:
Stop beam adjustment:
Stop range X-axis: 5 - 1000 mm
X-axis adjustment speed: max. 500 mm/s
X-axis drive power: 1.0 kW
Height adjustment:
Adjustment via servo motor (R-axis)
R-axis adjustment range from table surface: 85 - 235 mm
R-axis adjustment speed: max. 150 mm/s
R-axis drive power: 1.0 kW
Finger adjustment stop:
Adjustment range Z1 axis from left table end face: 450 - 3400 mm
Adjustment speed Z1 axis: max. 1000 mm/s
Drive power Z1 axis: 0.85 kW
Adjustment range Z2 axis from left table end: 650 - 3600 mm
Adjustment speed Z2 axis: max. 1000 mm/s
Drive power Z2 axis: 0.85 kW
Adjustment range X1 axis from center position: +/- 125 mm
Adjustment speed X1 axis: max. 250 mm/s
X1-axis drive power: 0.85 kW
Adjustment via backgauge (MVX):
Adjustment range: max. 100 mm
Adjustment speed like X-axis: 500 mm/s
Front bending aid:
Swivel angle BV1/BV2 axis: 55°
Swivel speed BV1/BV2 axis: max. 45°/s
Swivel-up force (per swivel arm) BV1/BV2 axis: max. 1500 N
Drive power BV1/BV2 axis: 1.0 kW
Attention: the machine can be transported on a truck up to 3000 mm wide
