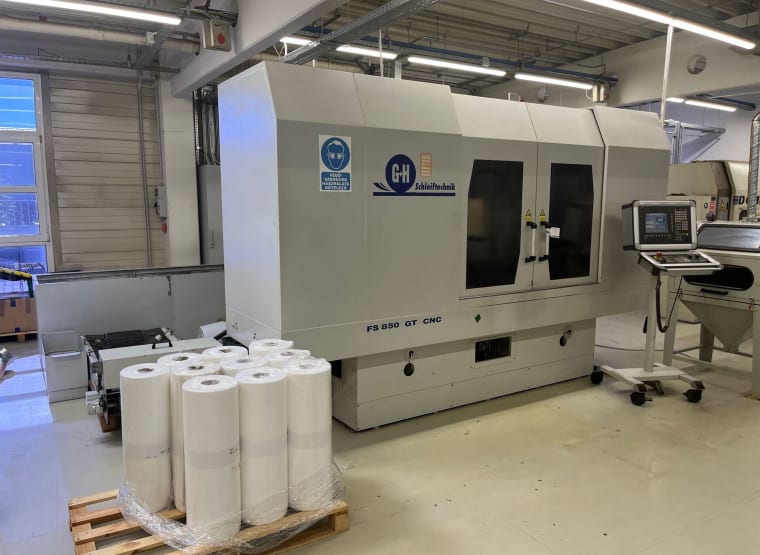

GEIBEL & HOTZ FS 850 GT CC CNC Surface Grinder
Top lot
lot no. 3
23,000 €
34 Bids 36 watchers
Log in to bid
€
Use bidding agent
+ auction fee & VAT
Closes in 1d 0h
Closing time
23,000 €
Current highest bid
Item details
- Name
- GEIBEL & HOTZ FS 850 GT CC CNC Surface Grinder
- Item number
- 859556
- Manufacturer
- GEIBEL & HOTZ
- Model / Type
- FS 850 GT CC
- Videos
-
Video 1 - Year of manufacture
- 2013
- Item available from
- immediately
- Item condition
- Location
-
Hungary, 9200 Mosonmagyaróvár
- Show on map
- All items at this location
Costs and benefits
- 18 %
- 2,500.00 €
- Total Price
- plus VAT
- Shipping costs
- not included
- Delivery terms
- FCA Mosonmagyaróvár, loaded on truck
- Payment terms
- 100% payment prior to collection
- tax / deposit
Technical details
- control
- Siemens 840D
- table surface area l x w
- 1000x500 mm
- weight approx.
- 8,000 kg
- Approx. Onsite Dimension. (l x w x h)
- 5,000 x 2,600 x 6,500 mm
Item description
S/N: 20 3739 0213
- Grinding length 800 mm
- Grinding width 500 mm
- Grinding height 425 mm
- Table load capacity 1 100 kg
- X-axis - longitudinal movement of the grinding table
- Longitudinal table movement 50 - 850 mm
- Table speed 0,001 - 35 m/min
- Y-axis - vertical movement
- Distance spindle - table 180 - 625 mm
- Distance spindle - table (optional) 180 - 825 mm
- Vertical speed 50 - 4000 mm/min
- Z axis - transverse movement
- Transverse movement (max.) 500 mm
- Transverse speed 50 - 4 000 mm/min
- C axis - Grinding spindle
- Motor power of grinding spindle 11 kW
- Grinding spindle motor power (optional) 17 kW
- Grinding spindle speed 800 - 2 380 min-1
- Grinding wheel (standard) 400 x 100 x 127 mm
Automatic translation
Auction details
- lot no.
- 3
- Documents
- Spec. Auction Terms
- Inspection
-
The exact location is available on request.
No fixed date. The items are in different locations (see item description). Inspection by appointment only!
