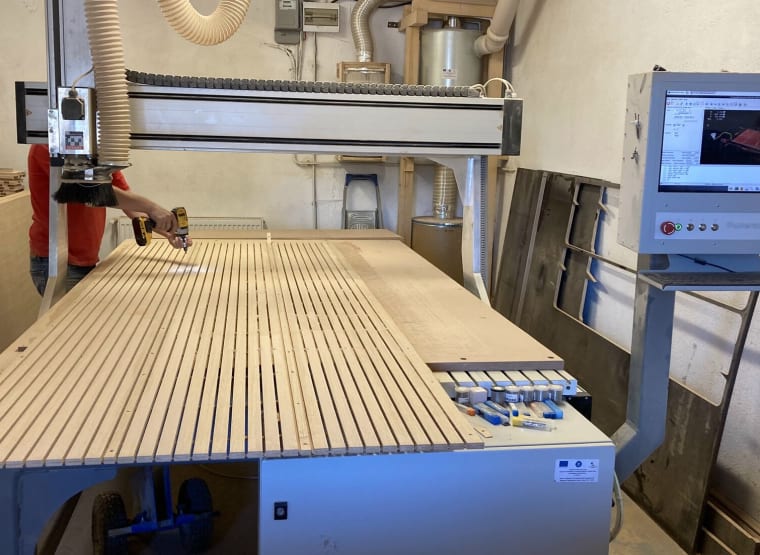

GENERAL NUMERIC LC-PRO 1524 Router CNC

lot no. 14

1/25

Do you have any questions in relation to the item? Please contact us.

Bogdan Zaharia Project Manager

+40 734 594 975

Email bogdan.zaharia@surplex.com

Item details

Name

GENERAL NUMERIC LC-PRO 1524 Router CNC

Item number

888306

Manufacturer

GENERAL NUMERIC

Model / Type

LC-PRO 1524

Videos

Video 1 Video 2 Video 3 Video 4 Video 5 Video 6

Year of manufacture

2019

Item available from

immediately

Item condition

Location

Romania, 115300 Curtea De Arges

Show on map
All items at this location

Costs and benefits

Dismantling & loading costs (binding): 600.00 €
Shipping costs: not included
Delivery terms: FCA Curtea De Arges, loaded on truck
Payment terms: 100% payment prior to collection
tax / deposit: In the case of a cross-border supply, the amount of tax due is initially retained by the deposit shown on the invoice.

tax / deposit

In the case of a cross-border supply, the amount of tax due is initially retained by the deposit shown on the invoice.
The refund of the deposit will be made as soon as the customer has submitted the export documents necessary to prove the tax-free delivery to us and these have been successfully checked.
If you commission Surplex with the transport, the deposit can usually be waived. You can request a transport quotation from your responsible logistics specialist. You will find the contact details on your invoice.

Technical details

Approx. Onsite Dimension. (l x w x h): 1,920 x 3,000 x 1,800 mm
weight approx.: 1,500 kg

Item description

CNC router LC-PRO 1524

construction from steel profiles welded, batt made of welded steel profiles, tension-relieved and milled plane-parallel
pneumatic compensator for Z axis
servo motors AC Servo ISEL Germany with encoder on all axes CNC modular General Numeric for servomotors that includes:
4 GN Servodrive 20 drivers, 1 combined security + IO module, converter of frequency, sources, etc.
converter for control of the milling motor
console with integrated industrial PC LCD 19"", silicone keyboard, mouse (USB,
spindle 3.3 kW, Teknomotor, max. 24,000 rpm with manual change of
tools, ordered in frequency from software, thermal protection
CAD/CAM: Vectric VCarvePro""
tension-relieved and plane-parallel milled
table with T channels in aluminum profile
useful strokes: 1510 x 2400 x 410 mm
aluminum profile table: 1500 x 3000 mm
repositioning accuracy (+/- 0.01 mm)
