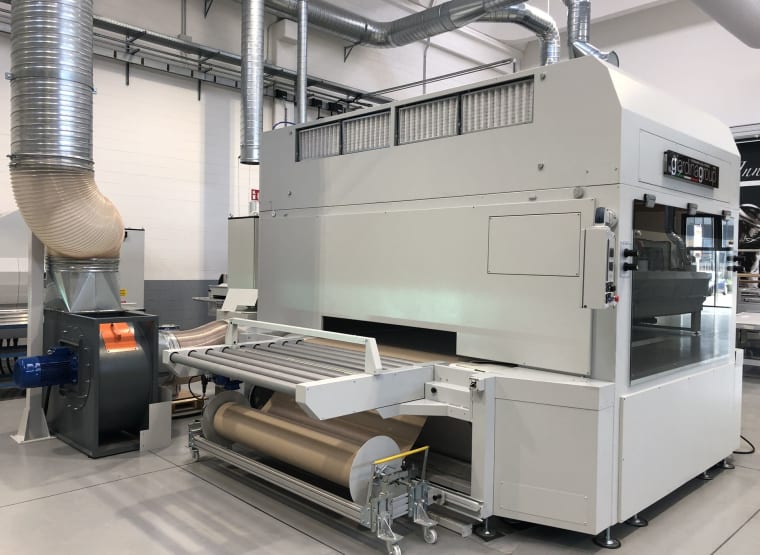

GIARDINA DUALTECH 420 DB DRY Roller Application Machine

GIARDINA DUALTECH 420 DB DRY Roller Application Machine
Name
GIARDINA DUALTECH 420 DB DRY Roller Application Machine
Item number
662348
Manufacturer
GIARDINA
Model / Type
DUALTECH 420 DB DRY
Year of manufacture
2020
Item available from
immedaitly
Item condition
in working order
Location
Germany, 87647 Kraftisried
Dismantling & loading costs (binding)
1,450.00 €
Shipping costs
not included
Delivery terms
FCA Kraftisried, loaded on truck
Payment terms
100% payment prior to collection
working width
1,300 mm
hollow height
100 mm
main motor
28,0 kW
Approx. Onsite Dimension. (l x w x h)
13,500 x 2,400 x 2,400 mm
weight approx.
5,000 kg
GIARDINA DUALTECH 420 DB DRY Roller Application Machine
with synthetic-coated, 2,000 mm wide conveyor belt

and a working width of 1,300 mm

Material recovery GREEN BELT


Infeed roller conveyor with a working width of 1,300 mm, length 1,220 mm

  •     Roller transport, driven rollers with suction device at the bottom.
  •     Workpiece blow-out, rotating blow-out, time-controlled
  •     Outfeed transport- hinged
  •     Lexan cover, hinged at the discharge, cover of the green belt zone
  •     Powered roller transport, PVC coated rollers.

__________________________________________________________________
The linear slides are dust-sealed and are maintained via a few central lubrication points.
  • Modern software controls the acceleration as well as the deceleration and is adjustable from 0-120 m/min.
  • Central lubrication with programmable intervals via PIN
_____________________________________________________________________Guns
  • On-site: four (4) guns per STÄUBLI beam, are taken over from the existing system. Preparation of the existing exchangeable plates for your guns.
Display HMI with 7" touch screen

- Programme parameters and fixed data
- Production statistics
- Memory of the painting programmes
- Fault diagnosis
- Teleservice adapter prepared via customer PC

Technical features DUALTECH 416 DB DRY

max. working width 1,300 mm
min. workpiece length 350 mm
max. material thickness 100 mm
Adjustable feed speed 2 - 5 m/min
motor power reciprocator (linear axis) 4.0 kW
one (1) frequency-controlled servo motor 0 - 120 m/min
Adjustable oscillation speed of the linear axes
(reciprocator) / two (2) linear axes

Dimensions of supply air connection (from AHU fresh air) mm according to layout
Supply air volume spray room 12,000 m³/h
Fan power supply air (supply air/exhaust air AHU) 2 x 1.5 kW

Dimensions exhaust air connection (to AHU exhaust air) mm acc. to layout

Exhaust air volume12,000 (-) m³/h
Fan power extract air (supply air/exhaust air AHU) 7.5 kW

Motor power inlet transport 0.37 kW
Motor power outlet transport 0.37 kW

Total installed power 28.0 kW
