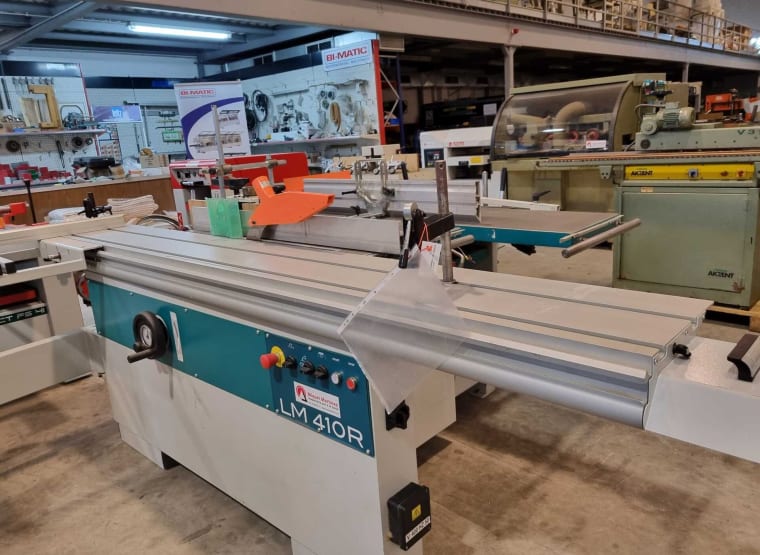

GRIGGIO LM410 R Combinada Universal

Serial Number: 17A007171400500

Planer:

• Diameter: 95
• Speed: 5000 g/min
• Overall dimension: 1800x415
• Max. export: 4 mm
• 3 blades: 415x35x3 mm
• Minimum sawing height: 22 mm
• Engine: 3kw

Saw unit:

• Saw diameter: 300 mm
• Tilting unit: 45º-90º
• Maximum cutting height:
• at 90º 95 mm
• at 45º 75 mm
• Saw diameter: 30 mm
• Scoring diameter: 13 mm
• Rotation speed: 4000rpm
• Motor: 3kw
• Working dimensions: 1040x420 mm
• Suction diameter: 100 mm
• Trolley dimension: 290x1500
• Trolley travel: 1050 mm

Thicknesser:

• Working dimensions: 415x640 mm
• Speed: 6m/min
• Exportation max. 4 mm
• Minimum workpiece length: 200 mm
• Maximum height: 230
• Minimum height: 8 mm
• Suction diameter: 100 mm

Spindle:

• Spindle diameter: 50 mm
• Max. tool length: 90 mm
• Max. diameter: 150 mm
• 3 speeds: 4000/5900/7600
• Suction diameter: 100 mm
