HECKLER & KOCH BA25CMC CNC Vertical Machining Center

Machining stations: 2 (left and right)
Clamping surface (X/Y): 850 x 420 mm (left + right)
Long version: (2250 x 420 mm)
Fastening: 3 x T-slot 18 x 850 mm
Center alignment groove: 18H8
Groove spacing: 160 mm
Max. Table load: 400 kg each
Distance table left-right: 550 mm
Table top-floor: approx. 950 mm (vertical)
Table top-spindle nose: 600 mm (vertical)
Front edge of cabin - table:
Door open: approx. 225 mm (horizontal)
Door closed: approx. 300 mm (horizontal)
Max. Door opening (left + right): approx. 2150 mm (center post removed)
Tool magazine: 36 tools
Max. Tool diameter: 72 mm (125 mm with free side positions)
Max. Tool length: 280 mm
Max. Tool weight: 4 kg (7.5 kg with extended WW time)
Automatic tool change
Average chip-to-chip time: approx. 5.5 s (according to VDI 2852)
Work spindle:
Three-phase asynchronous motor 8.5 kW (40%ES): 1250 rpm
6 kW (100%ED): 1250 rpm
Main spindle bearing: 4-fold
Front main spindle diameter: 70 mm
Tool holder steep taper: SK 40 (DIN 69871/form A or AD)
Cutting capacity drilling (ST60): Diameter32 mm (with indexable insert drills) N=2400 rpm
S=0.08 mm/rev
Tapping (ST60 m 24 x 2)
Milling capacity (ST60): approx. 175 ccm/min (with cutter head diameter: 63 mm)
(N=1000 rpm)
S=1150/min
Control data: HECKLER & KOCH CNC 785-2
Working range:
X: 600 mm (left + right)
Y: 420 mm (left + right)
Z: 400 mm (left + right)
For long version:
X: 1800 mm
Accuracy VDI/DGQ 3441:
Position tolerance type/600: 0.020 mm/600 mm
Average position spread Ps (X, Y): 0.01 mm
Feed rate:
Selectable up to rapid traverse: 0 - 25 m/min for X-, Y-, Z-axis
Feed forces: 6000 N for X-, Y-, Z-axis
For further technical data see pictures

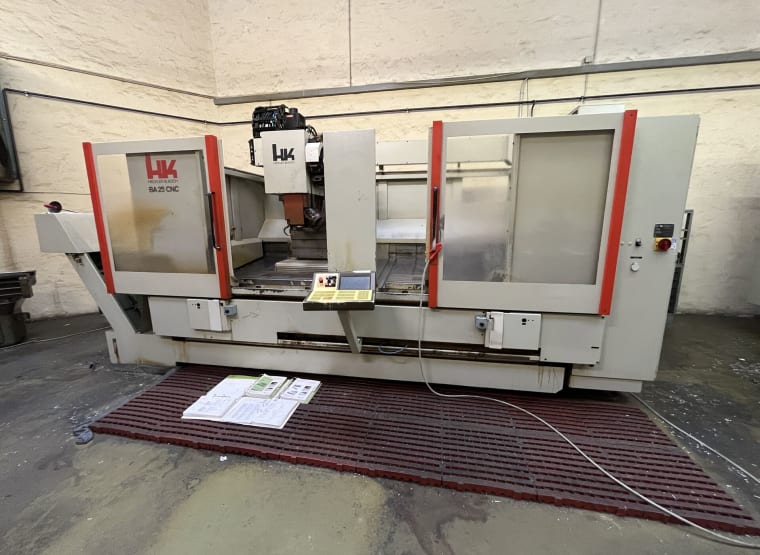

With technical documentation as shown in the pictures
Transport dimensions: approx. 4500 x 2400 x 2800
