HECKLER & KOCH BA35 CNC Vertical Machining Center

Machining stations: 2 (left and right)
Work table support: 2 support rails for VARIO/table program
VARIO top table (standard clamping surface) (X/Y): 850 x 500 mm
Fastening 5 x t-slot: 18 x 850 mm
Central alignment groove: 18H8
Groove spacing: 100 mm
Table height: 120 mm
For long version Clamping surface (X/Y): 3000 x 500 mm
Distance table left-right: 550 mm
Table top base: approx. 950 mm (vertical)
Table top spindle nose: max. 700 mm (vertical) (without table: 820 mm)
Table top spindle nose: min. 200 mm (vertical) (without table: 320 mm)
Max. Table load (with table weight 280 kg): 630 kg each
Front edge of cabin table:
Door open: approx. 250 mm (horizontal)
Door closed: approx. 320 mm (horizontal)
Max. Door opening (L+R): approx. 2500 mm (center post removed)
Tool magazine:
Chain magazine: 1 x 36 tools
Max. Tool diameter: 80 mm (160 mm with free slots)
Max. Tool length: 300 mm (see tool data sheet)
Max. Tool weight: 4 (8) kg
Automatic tool change
Average chip-to-chip time: approx. 6 s
Work spindle:
Three-phase asynchronous motor 22.5 kW (40%ED): 1250 rpm
15 kW (100%ED): 1250 rpm
Infinitely variable speed range: 50 - 7500 rpm
Main spindle bearing: 4-fold
Main spindle diameter: 70 mm
Tool holder: SK 40
Feed rate:
X-axis/Y-axis/Z-axis: 0 - 15 m/min
Feed forces (X-axis/Y-axis/Z-axis): 8500 N

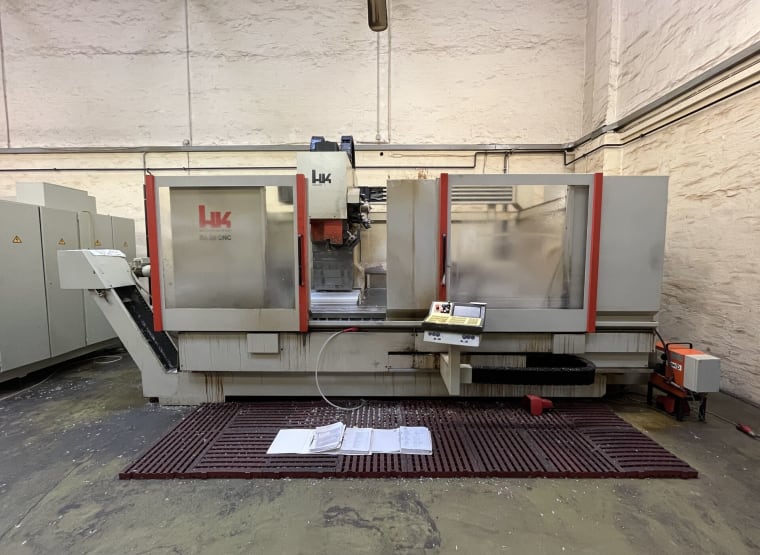

With technical documentation as shown in the pictures
Important note: the machine vice on the work table shown in the pictures is not included in the scope of delivery and sale
Transport dimensions: approx. 5000 x 2600 x 3000 mm
Incl. SK 40 tools with holders (as shown in the pictures) (with approx. 32 pieces)
