Hot lot
lot no. 7
600 €
42 Bids 51 watchers
Log in to bid
€
Use bidding agent
+ auction fee & VAT
07/02/24 16:05
Closing time
600 €
Current highest bid
Item details
- Name

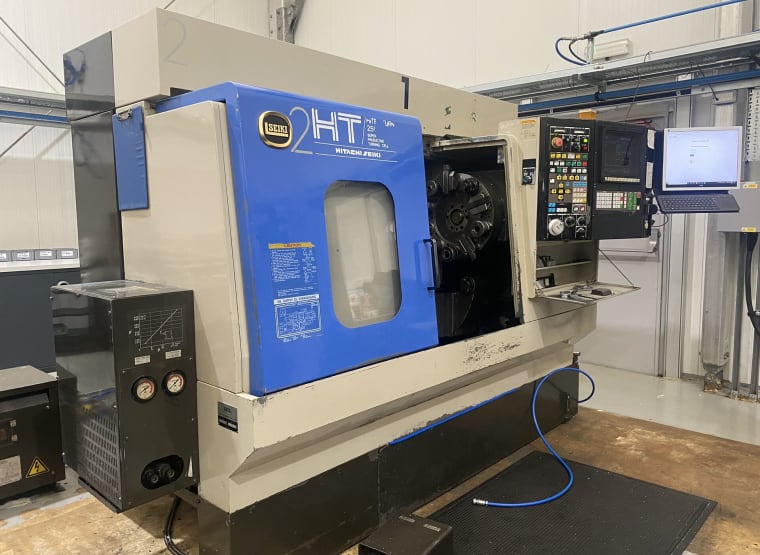

- HITACHI SEIKI HiTec-Turn 25R CNC Lathe
- Item number
- 880849
- Manufacturer
- HITACHI SEIKI
- Model / Type
- HiTec-Turn 25R
- Videos
-
Video 1 Video 2 Video 3 - Year of manufacture
- 1994
- Item available from
- immediately
- Item condition
- Location
-
United Kingdom (Great Britain), TS12 2LQ Skelton
- Show on map
- All items at this location
- Country restriction
Costs and benefits
- 18 %
- 700.00 €
- Total Price
- plus VAT
- Shipping costs
- not included
- Delivery terms
- FCA Skelton, loaded on truck
- Payment terms
- 100% payment prior to collection
- tax / deposit
- Security deposit
Technical details
- turning diameter
- 210 mm
- Drehlänge
- 380 mm
- serial number
- NRR 20015
- turning diameter over slide
- 380 mm
- feed range
- 0-2000 mm/min
- x-motion
- 200 mm
- z-motion
- 630 mm
- control
- Seicos-L Multi
- toolchanger positions
- 10
- number of controlled axes
- 2
- tool taper
- MT#5
- turning speed range
- 30-50000 rpm
- total power requirement
- 11 kW
- weight approx.
- 4,000 kg
- Approx. Onsite Dimension. (l x w x h)
- 2,650 x 1,600 x 1,900 mm
Item description
- S/N: NRR 20015
- Swing over bed: 380 mm
- Max. turning diameter: 210 mm
- Distance between centers: 610 mm
- Max. turning length: 380 mm
- X Axis travel: 200 mm
- Z Axis travel: 630 mm
- Turning diameter over bed: 500 mm
- Max. travel length: 238 mm
- Controlled axis: 2
- Turret capacity: 10 positions
- Feed rate: 0-2000 mm/min
- Spindle speed: 30-5000 Rpm
- 3 jaw chuck: 8"
- Spindle nose: A2-6
- Motor: 11 kW
- CNC Control: Seicos-L Multi
- Tailstock quill taper: MT#5
- KV40 Quick-change tool turret type
- Tool eye (automatic tool presetting arm)
Note! Machine comes without tooling or tool holders
