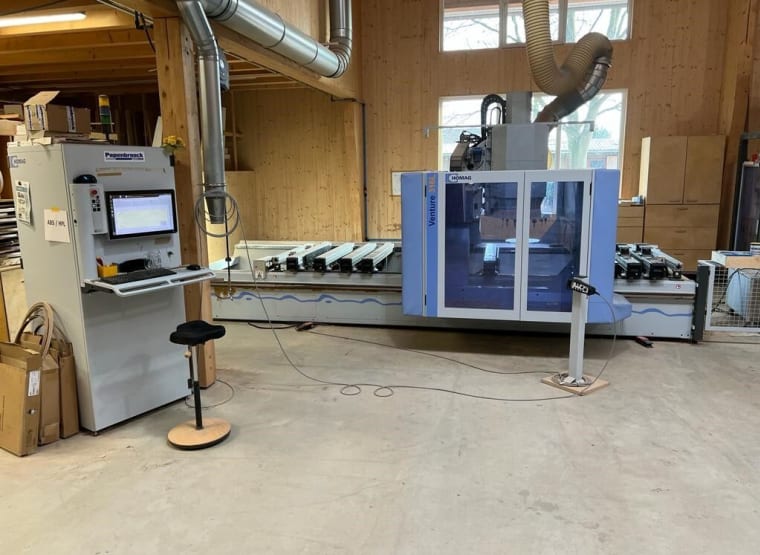

HOMAG BMG 311 Venture 316 L CNC Machining Centre (Wood)

HOMAG BMG CNC Machining Center

CNC-controlled 5-axis machining centre in travel portal design, for milling and drilling workpieces made of wood or wood-like materials materials

CONSOLENT TABLE: K
Clamping table with brackets and tubeless vacuum guide for flexible positioning of vacuum clamps

VACUUM SYSTEM:

• Rotary vane vacuum pump: 2 x 90/108 m³/h (50/60 Hz), incl. Coolant tank for the main spindle

5-AXIS MAIN SPINDLE 10 KW DRIVE5C

Drive5C aggregate interface:

• For the use of processing units in A=0 position

PLATE CHANGER 14-TIMES BELOW:

• For tools and aggregates with HSKF63
• The following tools and aggregates can be fitted:
• 14 x diameter max. 130 mm or
• 7 x diameter max. 180 mm and 7 x diameter max. 70 mm
• Tool diameter max. 200 mm for grinding tools
• Component weight max. 70 kg

DRILL HEAD 16 SPINDLES: V12/H4/S0/90°:
• 12 vertical spindles high speed:
• 4 horizontal spindles with saw, 0/90°:

Attention!
The tools and the HSK holders for the tool changer are not included within delivery.
A transport rack from HOMAG is required for transportation of the dismantled machine.
This results in costs of EUR 4000 EUR (plus tax). After the transport rack has been returned to SURPLEX, this amount minus a 20 % value deduction is refunded.
