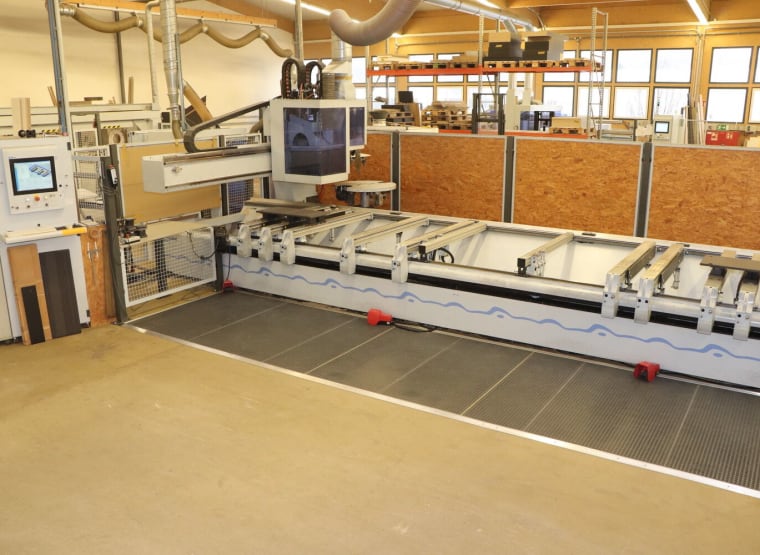

HOMAG Optimat BOF 311/60/K CNC Machining Centre with Interface for FLEX-5 (Wood)

Very well maintained HOMAG Optimat BOF 311/60/K CNC processing center.

Technical data:
Workpiece length all aggregates
- single loading max. 6.000 mm and pendulum loading max. 2.375 mm
Workpiece length tool diameter with 25 mm
- Single occupancy max. 6,175 mm and pendulum occupancy max. 2,550 mm
Workpiece width all units
- Front max. 1,450 mm and rear max. 1,700 mm
Workpiece width tool diameter with 25 mm
- Front max. 1,525 mm and rear max. 1,850 mm
Workpiece thickness
- Max. 300 mm incl. clamping device

Clamping table Console with LED display in X and Y direction
- Console length 1640 mm

Main spindle 15 KW and speed 1.000 - 24.000 rpm
- C-axis with interface for FLEX-5 (aggregate not included!)

Drilling head MPU horizontal and vertikal S360°
- MultiProcessingUnit with C-axis +/- 185° for drilling operations with any angle
- Milling spindle 6 KW on the drilling head MPU

(The tools with HSK holder, drills, aggregates for the tool changer and vacuum pumps are not included in the delivery. For the transport of the dismantled machine, a transport frame is required from HOMAG, for which costs of EUR 6,800 plus VAT will be charged. After return of the transport frame to the Meier company, the amount will be refunded minus a value deduction of 20 %).
