Tip
lot no. 4
15,000 €
16 watchers
Log in to bid
€
Use bidding agent
+ auction fee & VAT
25/01/24 14:03
Closing time
15,000 €
Starting bid
Item details
- Name

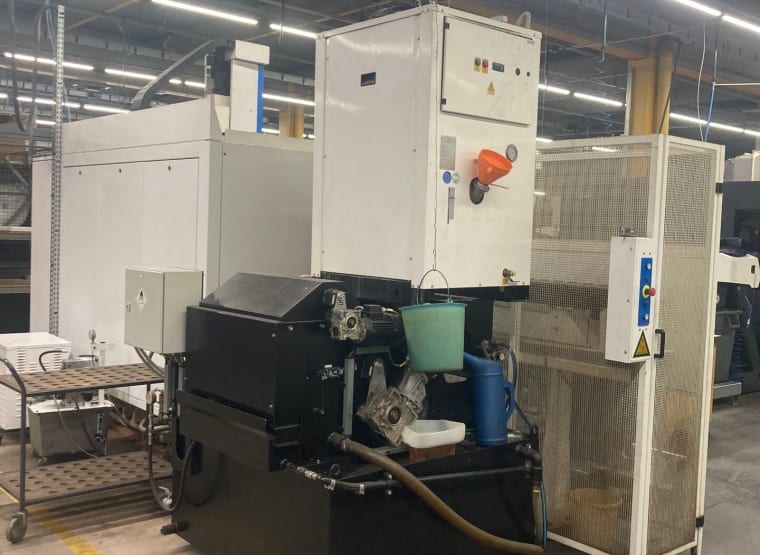

- HURON 5-Axis Milling Machine
- Item number
- 878639
- Manufacturer
- HURON
- Model / Type
- unknown
- Year of manufacture
- unknown
- Item available from
- immediately
- Item condition
- Location
-
France, region Bas-Rhin
Costs and benefits
- 18 %
- 2,000.00 €
- Total Price
- plus VAT
- Shipping costs
- not included
- Delivery terms
- FCA, loaded on truck
- Payment terms
- 100% payment prior to collection
Technical details
- Approx. Onsite Dimension. (l x w x h)
- 6,500 x 2,400 x 2,950 mm
- weight approx.
- 9,650 kg
Item description
5 axis milling center with indexing rotary table 5 axis machining center
CNC Siemens 840D
X-axis travel of the carriage = 650 mm
Axe Y (Travel of the table) = 700 mm
Z-axis vertical travel = 450 mm
Circular rotary table dia. 500 mm with 2 indexing A et C
Axe C rotation 360° (Motor torque) with rotary speeds 50 RPM
Axe A indexing - 45° / + 180 ° with rotary speeds 50 RPM
Electrospindle HSK 63 max speeds 16000 RPM power 22 kW
Electrospindle HSK 63 max speeds 24000 RPM power 20 kW
Working and rapids feeds max. 50 m/min on X, Y and Z
Through spindle cooland high pressure
ATC 60 tools in chain magazine
Blum laser measuring
Oil chiller fridge
Electrical transformer
Chip conveyor
Max. total power required 53 kW
CNC Siemens 840D
X-axis travel of the carriage = 650 mm
Axe Y (Travel of the table) = 700 mm
Z-axis vertical travel = 450 mm
Circular rotary table dia. 500 mm with 2 indexing A et C
Axe C rotation 360° (Motor torque) with rotary speeds 50 RPM
Axe A indexing - 45° / + 180 ° with rotary speeds 50 RPM
Electrospindle HSK 63 max speeds 16000 RPM power 22 kW
Electrospindle HSK 63 max speeds 24000 RPM power 20 kW
Working and rapids feeds max. 50 m/min on X, Y and Z
Through spindle cooland high pressure
ATC 60 tools in chain magazine
Blum laser measuring
Oil chiller fridge
Electrical transformer
Chip conveyor
Max. total power required 53 kW
Automatic translation
Auction details
- Auction name
- Metalworking Machinery - France
- lot no.
- 4
- Documents
- Spec. Auction Terms
- Inspection
-
The exact location is available on request.
No fixed date. The items are in different locations (see item description). Viewing by appointment only!
- Pick up
-
Monday, 05/02/2024 to
Friday, 09/02/2024, from 08:00 to 16:00
Monday, 12/02/2024 to
Friday, 16/02/2024, from 08:00 to 16:00
