"- Main spindle:
- Spindle passage clamp tension: 65 mm (without guarantee)
- Spindle diameter in the front bearing: 100 mm (without guarantee)
- Max. nominal turning diameter: 200 mm
- Max. circulation diameter: 420 mm
- Max. speed: 5000 rpm

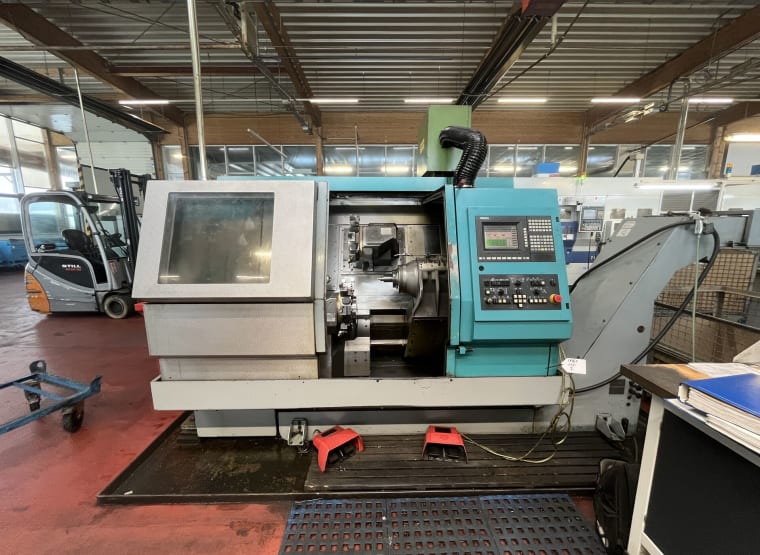

A HAINBUCH Spanntop clamping system is installed. Important note: The flange shown in the pictures, including the collet, is not included in the sales or scope of delivery!
- Counter spindle:
- Spindle passage clamp tension: 60 mm (without guarantee)
- Spindle diameter in the front bearing: 100 (no guarantee)
- Min. distance between collet chuck: 15 mm
- Longitudinal travel: 445 mm
- Rapid traverse: 22.5 m/min
- Tool carrier:
- Number of tools: 14
- Tool system DIN69880 size 25 x 48
- Main cutting force: max. 4000 N
- Switching time for one station: 0.2 s
- For 7 stations (180°): 0.4 s
- Cross slide 1 X, Z (top):
- Slide travel:
- X-axis: 120 mm
- Z axis: 400 mm
- Feed forces:
- X and Z axis: 5000 N
- Rapid traverse:
- X-axis: 20 m/min
- Z axis: 30 m/min
- Resolution:
- X-axis: 0.05 µm
- Z axis: 0.1 µm
- Cross slide 2 (bottom):
- Slide travel:
- X-axis: 105 mm
- Z axis: 400 mm
- Feed forces:
- X and Z axis: 5000 N
- Rapid traverses:
- X-axis: 20 m/min
- Z axis: 30 m/min
- Resolution:
- X-axis: 0.05 µm
- Z axis: 0.1 µm
- Tool drive device:
- Speed: max. 6000 rpm
Both turrets can accommodate powered tools.
Attention: the tool holders shown in the pictures are only photographed as examples and are not identical to the actual sales and scope of delivery.
Here 8 tool holders are delivered without cutting tools.
The number of tool holders in the pictures does not match the actual number delivered.
With technical documentation as shown in the pictures.
"
