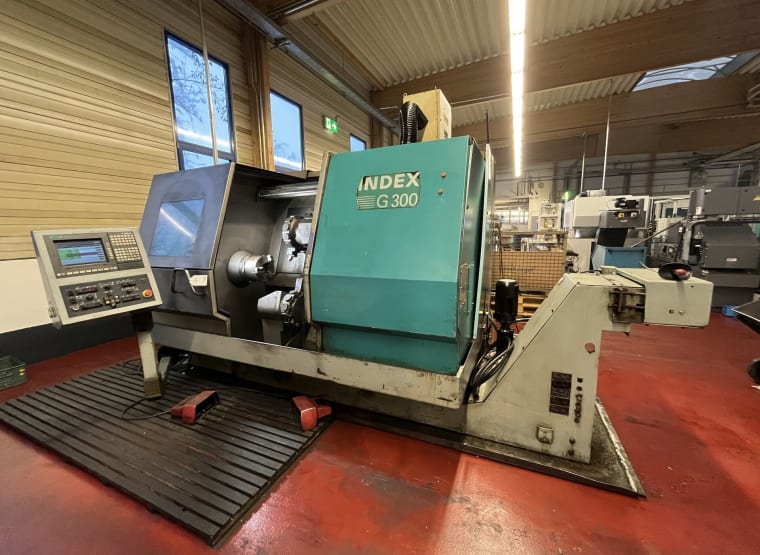

INDEX G300 CNC Lathe

"- Main spindle:
- Spindle passage clamp tension: 90 mm
- Spindle diameter in the front bearing: 140 mm
- Spindle nose ISO 702/1: 8
- Chuck diameter: 250/315 mm
- Max. nominal turning diameter: 270 mm
- Max. circulation diameter: 590 mm
- Max. speed: 3500 rpm
- Counter spindle:
- Spindle passage clamp tension: 65 mm
- Spindle diameter in the front bearing: 110 mm
- Spindle nose ISO 702/1 size 6
- Chuck diameter: 200/250 mm
- Max. speed: 5000 rpm
- Mind. distance between collet chuck: 20 mm
- Longitudinal travel: 770 mm
- Rapid traverse: 22.5 m/min
- Tool carrier:
- Number of tools: 12
- Tool systems: VDI 40 holders
- Main cutting force: max. 6000 N
- Switching time for one station: 0.3 s
- Switching time for 6 stations (180°): 0.6 s
- Cross slide 1 X, Z (top):
- Slide travel X-axis: 140 mm
- Z axis: 710 mm
- Feed force X-axis: 8000 N
- Z axis: 13000 N
- Rapid traverse X and Z axis: 20 m/min
- Resolution X-axis: 0.05 µm
- Z axis: 0.1 µm
- Cross slide 2 (bottom):
- Turret right (with counter spindle):
- Slide travel X-axis: 140 mm
- Z axis: 705 mm
- Feed force X-axis: 8000 N
- Z axis: 13000 N
- Rapid traverse: 20 m/min (X and Z axes)
- Resolution X-axis: 0.05 µm
- Z axis: 0.1 µm
For further technical data, see pictures.
With technical documentation as shown in the pictures.
Important note:
The clamping jaws that can be seen on the three-jaw chucks are not part of the sales or scope of delivery.
Turning tools and other cutting tools that are clamped on the VDI holders are also not included Sales and scope of delivery included.
R19"
