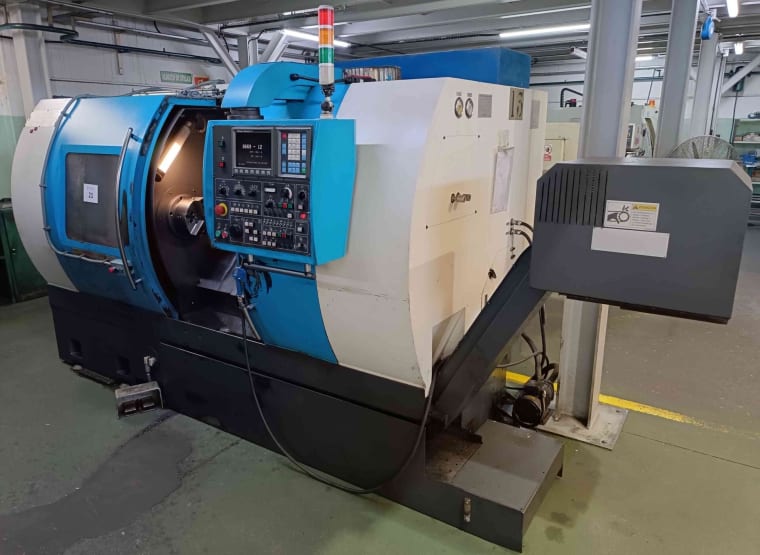

CNC Lathe
Series No. AC2453
Swing over bed 528 mm
Swing over cross slide 370 mm
Distance between centers 785 mm
Travels: X-axis: 290 mm (VDI 285), Z-axis: 650 mm
Speed range 30 - 3500 Rpm
Rapid feeds: (X) 15,000 mm/min, (Z) 18,000 mm/min
12-position turret
Turret with motorized tools
3-jaw chuck Ø 254 mm
FANUC O-T Series Control
Working hours according to counter: 2544 h
Including chip extractor
Tool holder with mounted tools, shown in photos.
