lot no. 40
750 €
1 Bid 9 watchers
Log in to bid
€
Use bidding agent
+ auction fee & VAT
28/02/24 10:39
Closing time
750 €
Current highest bid
Item details
- Name

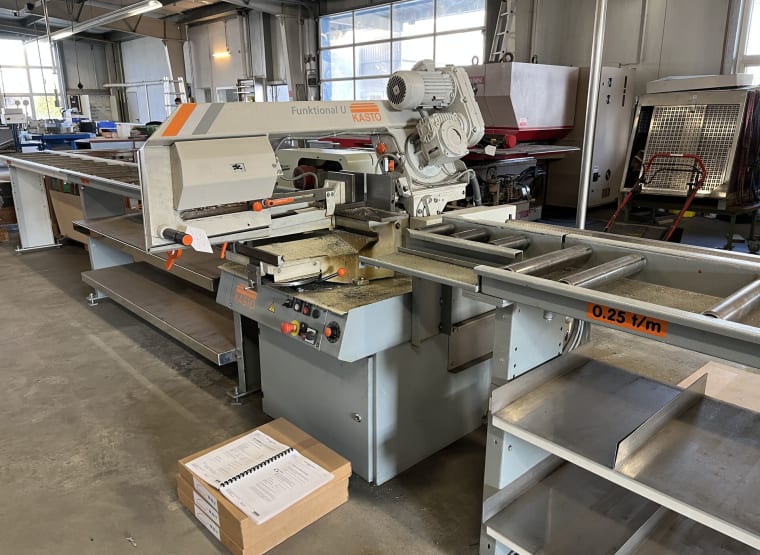

- KASTO FUNKTIONAL U Metal band saw
- Item number
- 888658
- Manufacturer
- KASTO
- Model / Type
- FUNKTIONAL U
- Year of manufacture
- 1998
- Item available from
- immediately
- Item condition
- Location
-
Germany, 77731 Willstätt-Sand
- Show on map
- All items at this location
Costs and benefits
- 18 %
- 200.00 €
- Total Price
- plus VAT
- Shipping costs
- not included
- Delivery terms
- FCA Willstätt-Sand, loaded on truck
- Payment terms
- 100% payment prior to collection
Technical details
- weight approx.
- 500 kg
- Approx. Onsite Dimension. (l x w x h)
- 8,000 x 1,700 x 1,600 mm
Item description
Machine number: 6000105073
Operating voltage: 400 V
Frequency: 50 Hz
Rated current: 10 A
Connection: 2.0 kW
Material support height: 950 mm
Cutting ranges:
Mitre angle: 90°
Round diameter: 260 mm
Square: 300 x 260 mm and 260 x 260 mm
Mitre angle: +/- 45°
Round diameter: 200 mm
Square: 200 x 240 mm and 200 x 200 mm
Mitre angle: + 60°
Round diameter: 165 mm
Square: 150 x 200 mm and 150 x 150 mm
Smallest diameter to be sawn: 6 mm
Min. length to be sawn (90° cut): 15 mm
Cutting speed: 35/70 m/min
Infinitely adjustable hydraulic cutting feed
Material clamping: mechanical
Saw blade dimensions: 2910 x 27 x 0.90 mm
Incl. 2 roller conveyors to the right and left
Roller conveyor width: approx. 380 mm
Roller conveyor length right: approx. 2600 mm
Roller conveyor length left: approx. 4500 mm
Operating voltage: 400 V
Frequency: 50 Hz
Rated current: 10 A
Connection: 2.0 kW
Material support height: 950 mm
Cutting ranges:
Mitre angle: 90°
Round diameter: 260 mm
Square: 300 x 260 mm and 260 x 260 mm
Mitre angle: +/- 45°
Round diameter: 200 mm
Square: 200 x 240 mm and 200 x 200 mm
Mitre angle: + 60°
Round diameter: 165 mm
Square: 150 x 200 mm and 150 x 150 mm
Smallest diameter to be sawn: 6 mm
Min. length to be sawn (90° cut): 15 mm
Cutting speed: 35/70 m/min
Infinitely adjustable hydraulic cutting feed
Material clamping: mechanical
Saw blade dimensions: 2910 x 27 x 0.90 mm
Incl. 2 roller conveyors to the right and left
Roller conveyor width: approx. 380 mm
Roller conveyor length right: approx. 2600 mm
Roller conveyor length left: approx. 4500 mm
Automatic translation
Auction details
- Auction name
- Closure of a Sheet Metal Processing Plant
- lot no.
- 40
- Documents
- Spec. Auction Terms
- Inspection
-
The exact location is available on request.
77731 Willstätt, Germany
- address on request -
Viewing by prior appointment only!>
- Pick up
-
Monday, 11/03/2024 to
Thursday, 14/03/2024, from 08:00 to 16:00
