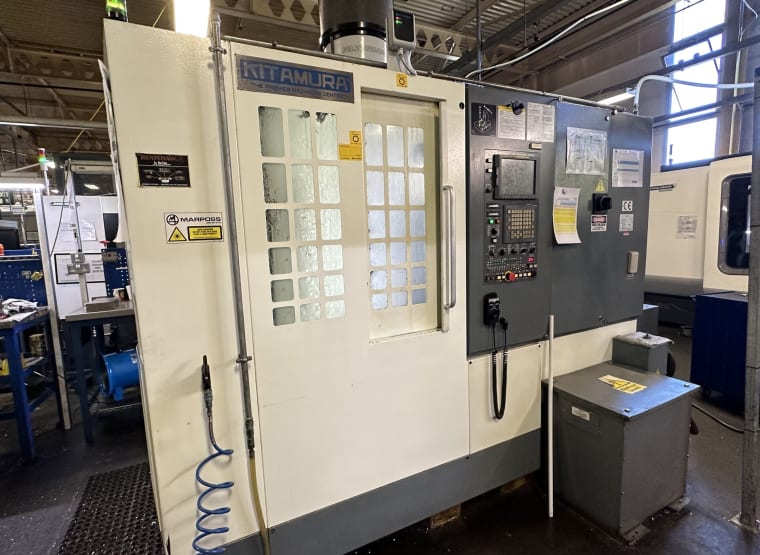

KITAMURA Mycenter-HX250iF Horizontal 4-Axis Machining Centre

KITAMURA Mycenter-HX250iF Horizontal 4-Axis Machining Centre
Top lot
lot no. 3
Closing time: 07/02/24 16:01
16,500 € Starting bid
19 watchers
Log in to bid
Use bidding agent
+ auction fee & VAT
KITAMURA Mycenter-HX250iF Horizontal 4-Axis Machining Centre
07/02/24 16:01
Closing time
16,500 €
Starting bid
Name
KITAMURA Mycenter-HX250iF Horizontal 4-Axis Machining Centre
Item number
865327
Manufacturer
KITAMURA
Model / Type
Mycenter-HX250iF
Year of manufacture
2011
Item available from
immediately
Item condition
Location
United Kingdom (Great Britain), L34 9HX Prescot
Country restriction
Buyer’s premium
18 %
Dismantling & loading costs (binding)
2,650.00 €
Total Price
plus VAT
Shipping costs
not included
Delivery terms
FCA Prescot, loaded on truck
Payment terms
100% payment prior to collection
tax / deposit
In the case of a cross-border supply, the amount of tax due is initially retained by the deposit shown on the invoice.
Security deposit
This auction requires the deposit of a credit card.
z-motion
330 mm
max. workpiece weight between centers
100 kg
x-motion
305 mm
y-motion
305 mm
control
Fanuc Series 18i-MB
pallet table size
254x254 mm
numbers of pallets
2
taper
BT30
power capacity - spindle
7.5 kW
toolchanger positions
40
turning speed range
150-15000 rpm
feed range
48,000 mm/min
total power requirement
20 kW
weight approx.
4,200 kg
Approx. Onsite Dimension. (l x w x h)
3,355 x 1,650 x 2,300 mm
  • 4-Axis Horizontal Machining Center
  • Max. workpiece size: diameter 350 x 400 mm
  • Max. load capacity: 100 kg
  • B-Axis: 0-360 degrees
  • Distance from table surface to spindle center: 60-365 mm
  • Distance from table center to spindle nose: 60-390 mm
  • Cutting feed X, Y, Z: 0-15000 mm/min
  • Tool selection method: random
  • Max. tool size: diameter 50 x 200 mm
  • Max. tool weight: 2 kg
  • Tool change time: 1,2 sec
  • Filtermist system: S400

Available from mid-December
