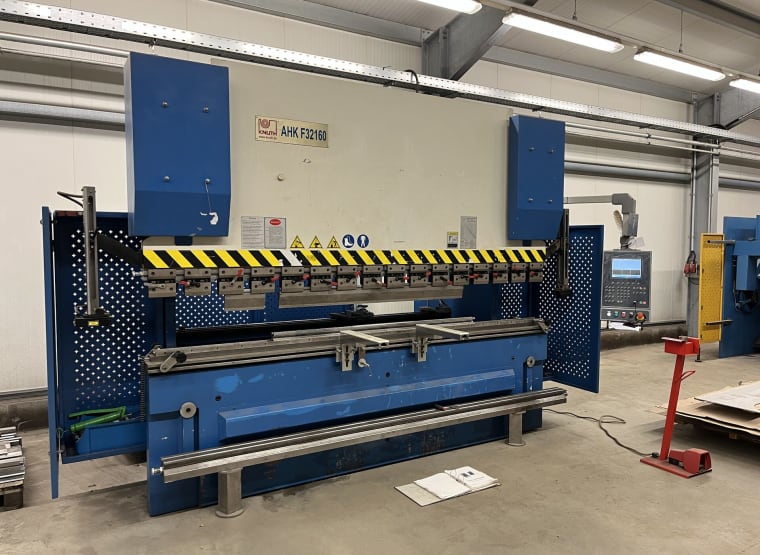

KNUTH AHK F 32160 CNC press brake

Top lot

lot no. 1

1/38

9,750 € Current highest bid

22 Bids 40 watchers

€

Use bidding agent

01/02/24 09:00

Closing time

9,750 €

Current highest bid

Item details

Name

KNUTH AHK F 32160 CNC press brake

Item number

882762

Manufacturer

KNUTH

Model / Type

AHK F 32160

Videos

Video 1

Year of manufacture

2010

Item available from

immediately

Item condition

Location

Germany, 25746 Heide

Show on map
All items at this location

Costs and benefits

Buyer’s premium: 18 %
Dismantling & loading costs (binding): 1,000.00 €
Total Price: plus VAT
Shipping costs: not included
Delivery terms: FCA Heide, loaded on truck
Payment terms: 100% payment prior to collection

Technical details

weight approx.: 11,800 kg
Approx. Onsite Dimension. (l x w x h): 4,400 x 2,000 x 2,700 mm

Item description

"Machine number: 152006
Normal pressure: 1600 kN
Max. working width: 3200 mm
Distance between stands: 2700 mm
Distance between table and trestle: 480 mm
Height: 350 mm
Cylinder stroke: 200 mm
Work table height: 900 mm
Power: 11 kW
Oil: 440 L
Speed: 100mm/s
Bending speed: 9.5 mm/s
Return speed: 95 mm/s
With operating instructions for the control (as shown in the pictures)
including the installed bending tool
Manufacturer: UKB (UWE KRUMM BURBACH)
Type: 11,514
R = 0.6/30°
H = 104
Max. 500 kN/m
Control:
Manufacturer: CYBELEC DNC 880S"
