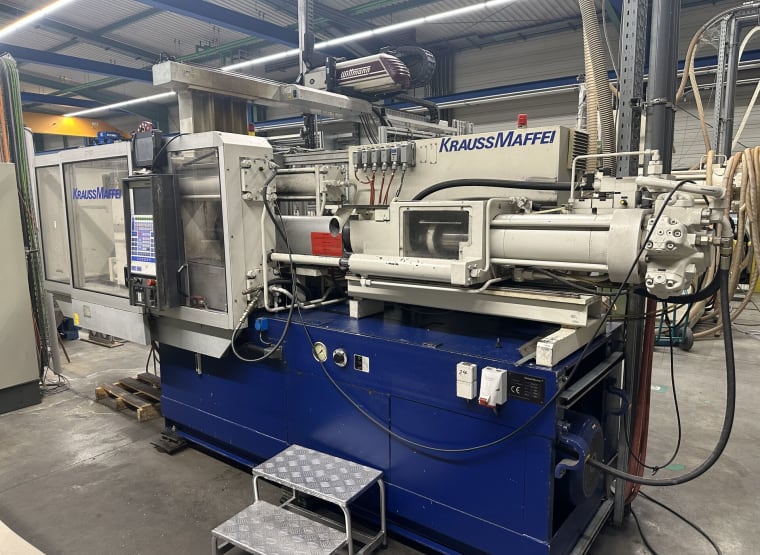

KRAUSS-MAFFEI KM 150-900 C1 Injection molding machine
lot no. 16
1,900 €
1 Bid 2 watchers
Log in to bid
€
Use bidding agent
+ auction fee & VAT
01/02/24 10:15
Closing time
1,900 €
Current highest bid
Item details
- Name
- KRAUSS-MAFFEI KM 150-900 C1 Injection molding machine
- Item number
- 883484
- Manufacturer
- KRAUSS-MAFFEI
- Model / Type
- KM 150-900 C1
- Year of manufacture
- 1995
- Item available from
- immediately
- Item condition
- Location
-
Germany, 73529 Schwäbisch Gmünd
- Show on map
- All items at this location
Costs and benefits
- 18 %
- 500.00 €
- Total Price
- plus VAT
- Shipping costs
- not included
- Delivery terms
- FCA Schwäbisch Gmünd, loaded on truck
- Payment terms
- 100% payment prior to collection
Technical details
- Approx. Onsite Dimension. (l x w x h)
- 5,000 x 3,000 x 4,000 mm
- weight approx.
- 9,000 kg
Item description
"- Operating voltage: 400 V
- Frequency: 50 Hz
- Rated current: 100 A
- Control: KRAUSS MAFFEI
- Closing force: 150 kN
- Injection unit: 900
- Screw diameter: 55 mm
- Tool opening force: 86 kN
Driving force of the movable tool platen:
- Opening: 45 kN
- Closing: 35 kN
- Size of the tool clamping plates: 780 x 790 mm
- Clear width between the columns: 500 x 500 mm
- Tool opening path: 600 mm
- Tool installation height: 300 mm
- Opening width: 900 mm
- Hydraulic ejector stroke: 150 mm
- Force forward/back: 22/11 kN
- Incl. handling system from the manufacturer WITTMANN
Travel paths:
- X: 550mm
- Y: 1200mm
- Z: 2500 mm
As well as a conveyor belt
Bandwidth: approx. 800 mm
"
- Frequency: 50 Hz
- Rated current: 100 A
- Control: KRAUSS MAFFEI
- Closing force: 150 kN
- Injection unit: 900
- Screw diameter: 55 mm
- Tool opening force: 86 kN
Driving force of the movable tool platen:
- Opening: 45 kN
- Closing: 35 kN
- Size of the tool clamping plates: 780 x 790 mm
- Clear width between the columns: 500 x 500 mm
- Tool opening path: 600 mm
- Tool installation height: 300 mm
- Opening width: 900 mm
- Hydraulic ejector stroke: 150 mm
- Force forward/back: 22/11 kN
- Incl. handling system from the manufacturer WITTMANN
Travel paths:
- X: 550mm
- Y: 1200mm
- Z: 2500 mm
As well as a conveyor belt
Bandwidth: approx. 800 mm
"
Automatic translation
Auction details
- lot no.
- 16
- Documents
- Spec. Auction Terms
- Inspection
-
The exact location is available on request.
73235 Weilheim Teck / 73529 Schwäbisch Gmünd, Germany
- address on request -
Viewing by prior appointment only!
- Pick up
-
Monday, 12/02/2024 to
Friday, 16/02/2024, from 08:00 to 16:00
Monday, 19/02/2024 to
Wednesday, 21/02/2024, from 08:00 to 16:00
