LEITZ PMMF1600/M00-211-300 Coordinate Measuring Machine

LEITZ PMMF1600/M00-211-300 Coordinate Measuring Machine
Name
LEITZ PMMF1600/M00-211-300 Coordinate Measuring Machine
Item number
887787
Manufacturer
LEITZ
Model / Type
PMMF1600/M00-211-300
Documents
TD_Leitz_Mess.pdf
Year of manufacture
2008
Item available from
immediately
Item condition
Location
Germany, 01665 Klipphausen
Shipping costs
not included
Delivery terms
EXW Klipphausen, ex foundation, unpackaged
Payment terms
100% payment prior to collection
z-motion
1,000 mm
x-motion
3,000 mm
y-motion
2,000 mm
table surface area l x w
3000x2000 mm
weight approx.
8,500 kg
Approx. Onsite Dimension. (l x w x h)
4,500 x 4,000 x 5,200 mm

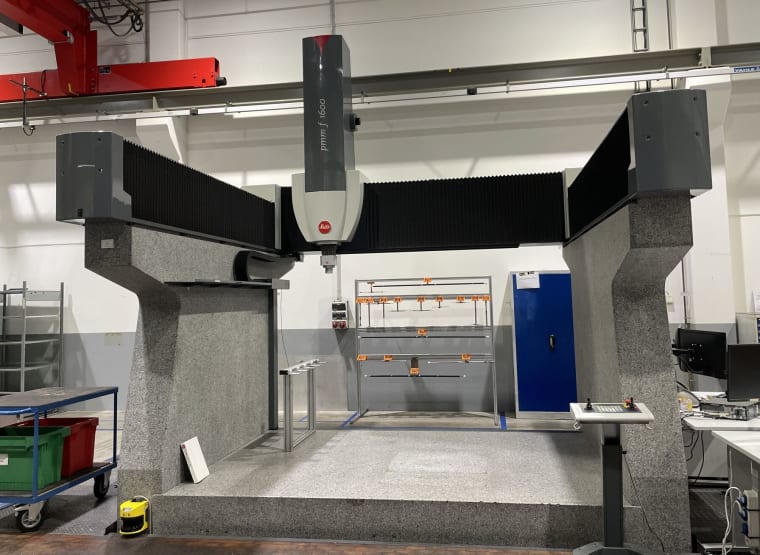

The used PMM-F is specially designed for testing medium-sized components and gears. This 3D measuring machine has an overhead design and serves as a coordinate measuring machine, gear measuring centre, form tester and roughness measuring machine.
  • Area of application: Inspection of medium-sized components and gears
  • Design: Overhead design
  • Functions: Coordinate measuring machine, gear measuring centre, form tester, roughness measuring machine
  • Measuring range: approx. 3,000 x 2,000 x 1,600 mm
  • Resolution: 5 nm
  • Equipment: Various measuring probes
  • Accessories: Work table, mobile container, chair
  • Control desk: Equipped with a Dell PC
The PMM-F offers a precise and versatile solution for measuring and testing components and gears in medium dimensions.
