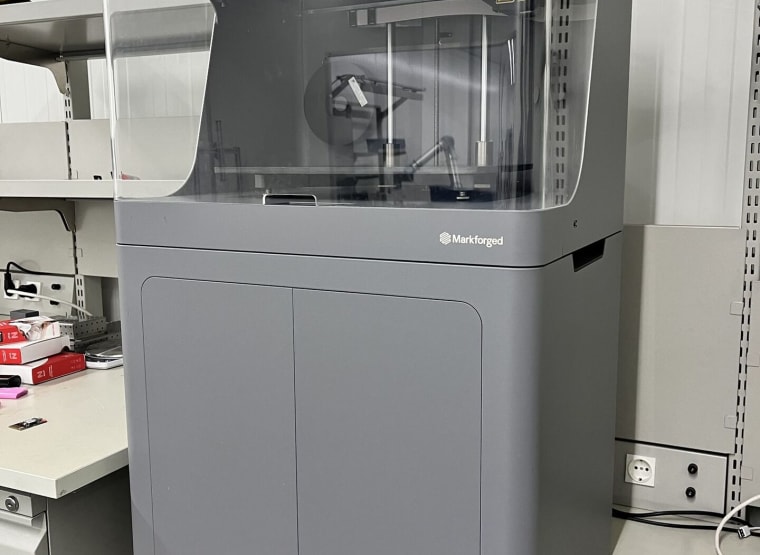

MARKFORGED X7 (GEN 2) 3D Printer

MARKFORGED MARKFORGED 3D Printer

Printing Process: Continuous Fiber Reinforcement (CFR)
Z Layer Resolution: 50 μm - 250 μm
Printing Media: Composite Base Filaments, Continuous Fibers
Internal Part Geometry: Closed Cell Infill with Continuous Fiber Reinforcement
Print Bed: Precision Ground Composite


Process: Fused Filament Fabrication, Continuous Filament Fabrication
Build Volume: 330 x 270 x 200 mm (13 x 10.6 x 7.9 in)
Weight: 48 kg (106 lbs)
Machine Footprint: 584 x 483 x 914 mm (23 x 19 x 36 in)
Print Bed: Kinematic coupling — flat to within 80 μm
Laser: In-process inspection, active print calibration, bed leveling
Extrusion System: Second-generation extruder, out-of-plastic and out-of-fiber detection
Power: 100–240 VAC, 150 W (2 A peak)
RF Module: Operating Band 2.4 GHz Wi-Fi Standards 802.11 b/g/n

Materials
Plastics Available: Onyx, Onyx FR, Onyx ESD, Nylon White, P-PLA, S-TPU
Fibers Available: Carbon Fiber, Carbon Fiber FR, Fiberglass, Aramid Fiber (Kevlar®), HSHT Fiberglass
Tensile Strength: 800 MPa (25.8x ABS, 2.6x 6061-T6 Aluminum) *
Tensile Modulus: 60 GPa (26.9x ABS, 0.87x 6061-T6 Aluminum) *

Part Properties
Layer Height: 100 μm default, 50 μm minimum, 250 μm maximum
Infill: Closed cell infill: multiple geometries available

Software
Eiger Cloud: Slicer, part / build management (other options available at cost)
Security: Two-factor authentication, org admin access, single sign-on
Blacksmith:  Adaptive manufacturing platform (additional purchase required)

Machine Size: 584 x 483 x 914 mm
48 kg
