Hot lot
lot no. 120
4,800 €
20 Bids 56 watchers
Log in to bid
€
Use bidding agent
+ auction fee & VAT
Closes in 1d 1h
Closing time
4,800 €
Current highest bid
Item details
- Name

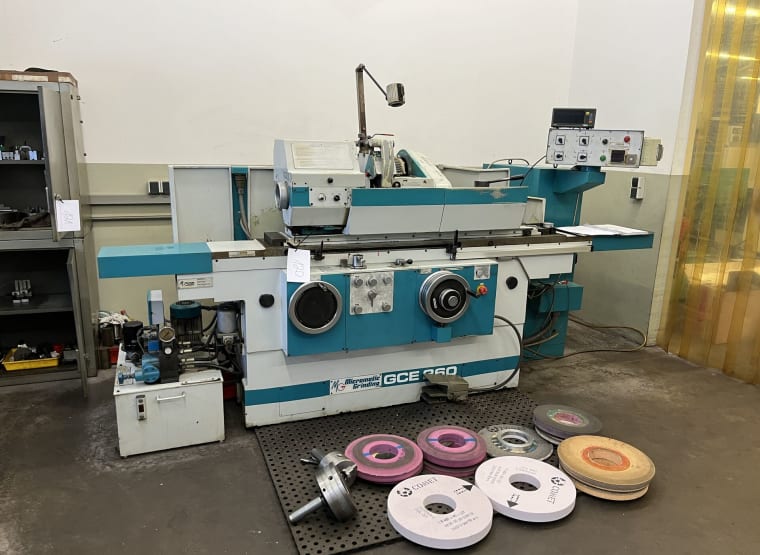

- MICROMATIC GCE260x630 Cylindrical grinding machine
- Item number
- 882009
- Manufacturer
- MICROMATIC
- Model / Type
- GCE260x630
- Year of manufacture
- 2001
- Item available from
- immediately
- Item condition
- Location
-
Germany, 89150 Laichingen
- Show on map
- All items at this location
Costs and benefits
- 18 %
- 350.00 €
- Total Price
- plus VAT
- Shipping costs
- not included
- Delivery terms
- FCA Laichingen, loaded on truck
- Payment terms
- 100% payment prior to collection
Technical details
- weight approx.
- 3,000 kg
- Approx. Onsite Dimension. (l x w x h)
- 3,200 x 1,400 x 1,700 mm
Item description
Serial number: 1710
Center height: 130 mm
Grinding length: 630 mm
Max. Workpiece weight between the centers: 80 kg
Grinding wheel dimensions: 400 x 120 x 50 mm
Peripheral speed: 33 m/s
Rapid traverse: 50 mm
Infeed with handwheel: 20 mm
Automatic plunge depth per diameter: 1.7 mm
Smallest increment per diameter: 0.001 mm
Infeed speed/diameter: 0 - 60 mm/min
Carriage speed: 0.05 - 5 m/min
Max. Carriage stroke: 680 mm
Smallest slide oscillation path: 2 mm
Max. Upper table oscillation angle: -2 - 10.5°
Spindle:
Incl. an additional clamping fixture diameter: 160 mm
Incl. one magnetic rotary table (200 mm) and various grinding wheels
Center height: 130 mm
Grinding length: 630 mm
Max. Workpiece weight between the centers: 80 kg
Grinding wheel dimensions: 400 x 120 x 50 mm
Peripheral speed: 33 m/s
Rapid traverse: 50 mm
Infeed with handwheel: 20 mm
Automatic plunge depth per diameter: 1.7 mm
Smallest increment per diameter: 0.001 mm
Infeed speed/diameter: 0 - 60 mm/min
Carriage speed: 0.05 - 5 m/min
Max. Carriage stroke: 680 mm
Smallest slide oscillation path: 2 mm
Max. Upper table oscillation angle: -2 - 10.5°
Spindle:
- Spindle taper Mounting: MK 5
- Spindle motor power: 1.1 k
- Taper of the center mount: MK 4/MK 3
- Diameter of the tailstock quill: 50 mm
- Max. Quill travel: 40 mm
Incl. an additional clamping fixture diameter: 160 mm
Incl. one magnetic rotary table (200 mm) and various grinding wheels
Automatic translation
Auction details
- Auction name
- Closure of a Toolmaker
- lot no.
- 120
- Documents
- Spec. Auction Terms
- Inspection
-
The exact location is available on request.
73235 Weilheim Teck / 73529 Schwäbisch Gmünd
Germany
- address on request -
Viewing by prior appointment only!
- Pick up
-
Wednesday, 07/02/2024 to
Friday, 09/02/2024, from 08:00 to 16:00
Monday, 12/02/2024 to
Thursday, 15/02/2024, from 08:00 to 16:00
Do you have any questions in relation to the item? Please contact us.
Thomas Reichelt Project Manager
