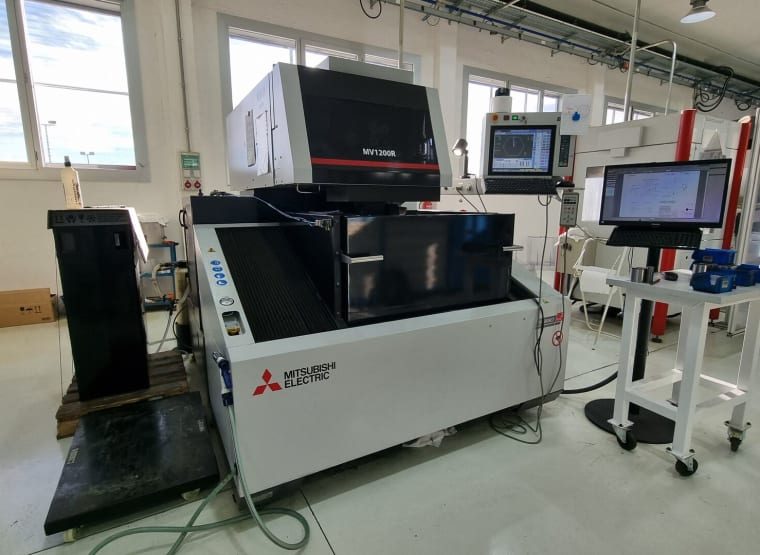

MITSUBISHI MV1200R Wire EDM Machine

MITSUBISHI MV1200R Wire EDM Machine
Name
MITSUBISHI MV1200R Wire EDM Machine
Item number
803541
Manufacturer
MITSUBISHI
Model / Type
MV1200R
Videos
Video 1
Year of manufacture
2016
Item available from
Immediately
Item condition
good
Location
Spain, 08295 Sant Vicenç de Castellet
Dismantling & loading costs (binding)
1,000.00 €
Shipping costs
not included
Delivery terms
FCA Sant Vicenç de Castellet, loaded on truck
Payment terms
100% payment prior to collection
weight approx.
2,980 kg
Approx. Onsite Dimension. (l x w x h)
1,910 x 2,702 x 2,015 mm
Serial Number:55DR1663
  • Max. Workpiece dimensions: 800x600x215 mm
  • Max. Workpiece weight: 500 kg
  • Table dimensions: 640 x 540 mm
  • Travels:
    • X-axis: 400 mm
    • Y-axis: 300 mm
    • Z-axis: 220 mm
  • Table rapid traverse rate: 1300 mm/min
  • Wire diameter: 0,1 to 0,3 mm
  • Max. Wire feed speed: 23 m/min
  • Wire tension: 0,5 to 25 n
  • Taper: OPTOLinear T/C device
  • Taper angle: 15º (with 200mm plate thickness)
  • Working Hours 24073
Dielectric Fluid Reservoir:
  • Working tank volume: 550 litres
  • Filtration flow rate: 50 l/min
  • Water purifier: 10 litres
Other features:
  • Superfinishing
  • Rugosity less than Ra 0.2
