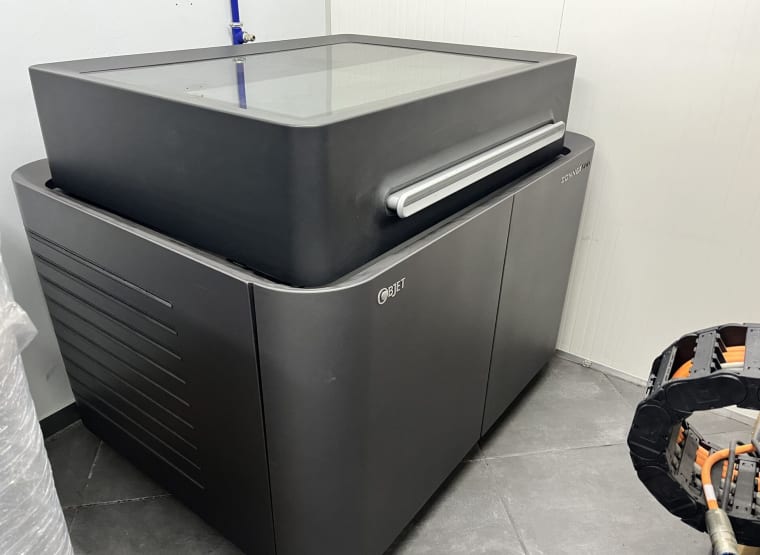

OBJET CONNEX500 3D Printer

OBJET CONNEX500 3D Printer
no. 50363
The Stratasys Connex500 is a state-of-the-art 3D printing solution that brings your creative ideas to life. With its advanced technology, it enables the precise production of complex and detailed models and prototypes. A standout feature of this impressive machine is its digital printing mode, which gives you even greater freedom in designing and implementing your projects.

The technology of the Stratasys Connex500 is based on the PolyJet process, which delivers highly accurate results with exceptional surface quality. It is possible to print models with a layer thickness of 16 µm. This high precision allows you to print intricate models with fine details.

With an increased build envelope of 490 x 490 x 200 mm, the Connex500 allows an even greater number of complex and detailed models to be created in a single print session, saving time and effort.

Operation of the Stratasys Connex500 is simple and user-friendly. With the free GrabCAD software, you can easily prepare your models and monitor the printing process.

Rigid photopolymers in white, black, gray, blue and transparent are available as model materials in 3.6kg cartridges. In addition, the machine can print flexible and dental model materials. Four material trays are installed, and the machine automatically switches from an empty to a full cartridge. This allows for even longer periods of unattended printing.

With the Connex Series digital print mode, you can also produce complex multi-component and multi-material models. You have the freedom to combine different materials, colors and shore hardnesses in a single model. In the case of the Connex500, you can mix two different model materials.

The Stratasys Connex500 can be installed anywhere and does not require any special set-up conditions. No special ventilation is required because Stratasys PolyJet systems do not emit harmful fumes, dust or other chemicals into your environment.

Model Materials:
• Transparent rigid (VeroClear)
• Rubber-like (Tango family) including black & translucent
• Transparent general-purpose (RGD720)
• Rigid Opaque (Vero family)
• Simulated Polypropylene (Endur & Durus)

Digital Model Materials:
• Transparent shades & patterns
• Rigid Opaque shades
• Rubber-like blends in a range of Shore A values
• Simulated Polypropylene materials with improved heat resistance

Support Material:
FullCure® 705 non-toxic gel-like photopolymer support

Build Size:
490 x 390 x 200 mm (19.3 x 15.4 x 7.9 in)

Layer Thickness:
Horizontal build layers down to 16-microns (0.0006 in)

Workstation Compatibility:
Windows 7

Network Connectivity:
LAN – TCP/IP

Size and Weight:
Objet500 Connex: 1420 × 1120 × 1130 mm
500 kg

Power Requirements:
110–240 VAC 50/60 Hz; 1.5 KW single phase

Regulatory Compliance:
CE, FCC

Special Facility Requirements:
Temperature 18-25 °C (64-77 °F); relative humidity 30-70% (non-condensing)
