Item details
- Name

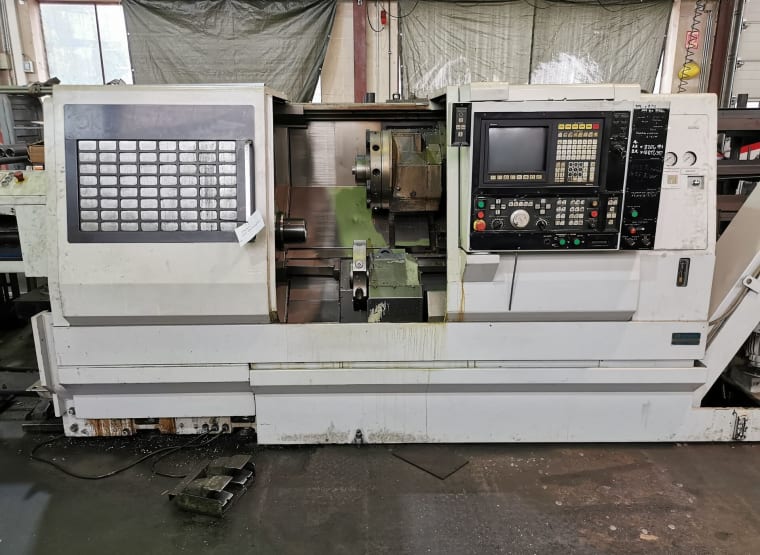

- OKUMA LR 15 CNC Lathe
- Item number
- 849268
- Manufacturer
- OKUMA
- Model / Type
- LR 15
- Year of manufacture
- 1990
- Item available from
- immediately
- Item condition
- Location
-
Germany, 73235 Weilheim Teck
- Show on map
- All items at this location
Costs and benefits
- 18 %
- 450.00 €
- Total Price
- plus VAT
- Shipping costs
- not included
- Delivery terms
- FCA Weilheim Teck, loaded on truck
- Payment terms
- 100% payment prior to collection
Technical details
- weight approx.
- 5,000 kg
- Approx. Onsite Dimension. (l x w x h)
- 6,400 x 2,000 x 1,700 mm
Item description
- CNC lathes with two turrets and CNC tailstock
- attention: the mounted quick-clamping chuck is not included in scope of delivery
- one turret (main turret) can accommodate driven tools
- with OKUMA OSP 5020L control system
- turning diameter: 240 mm
- turning length: 620 mm
- distance between centres: 800 mm
- swing diameter over bed: 450 mm
- swing diameter over longitudinal slide guide: 300 mm
- swing diameter over cross slide guide: 250 mm
- speed range of main spindle: 75 – 4200 rpm
- drive power of main spindle: 22 kW
- spindle bore: 82 mm
- attention: no statement can be made regarding function
- attention: the mounted quick-clamping chuck is not included in scope of delivery
- one turret (main turret) can accommodate driven tools
- with OKUMA OSP 5020L control system
- turning diameter: 240 mm
- turning length: 620 mm
- distance between centres: 800 mm
- swing diameter over bed: 450 mm
- swing diameter over longitudinal slide guide: 300 mm
- swing diameter over cross slide guide: 250 mm
- speed range of main spindle: 75 – 4200 rpm
- drive power of main spindle: 22 kW
- spindle bore: 82 mm
- attention: no statement can be made regarding function
