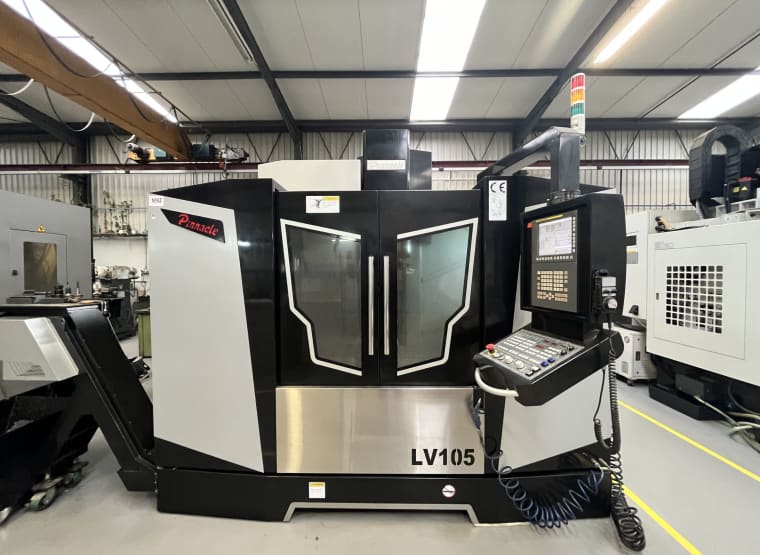

PINNACLE LV105 Vertical Machining Center

PINNACLE LV105 Vertical Machining Center
no. 3P21053F9

TABLE
Table Size: 1200 x 510 mm
Travel Ranges (X x Y x Z mm): 1020 x 560 x 560 mm
Max. Table Load: 600 kg
Spindle Nose to Able Surface: 100 ~ 660 mm
T-SLOT (Widht x Distance x Number): 18 x 100 x 5 mm

SPINDLE
Spindle: V-A5Q8 - J / 12000rpm
Sindle Motor: B IL 2/10000
TOOL SHANK & PULL STUD: ISO40
Spindle Inner Diameter: Ø70
Spindle Center to Column: 600 mm
Spindle Speed Direct Drive: 12000 rpm
Draw Bar Force: 950 Kgf
Main Monitor (con/30min kW): 5.5/7.5

AXIS SERVO MOTOR:
Fanuc kW: B22/2000is (2.5) [a 12/3000i (3.0)

AUTO TOOL CHANGER
Mag Type: DISK
Cam Type: Daul Arm
Tool Selection (Bi-direction): RANDOM
Tool Storage Capacity (PCs): 24
Max. Tool Diameter mm: Ø75
Max. Tool Lenght / Wight: 250 mm / 8 Kg

FEED RATE:
Rapid Feed Rate (X/Y/Z m/min): 30/30/24
Feed Rate (X/Y/Z mm/min): 10000

MISCELLANEOUS
Air Requirement: 6 kg/cm2
Voltage: 220V / 3Ph / 50/60Hz
Power requirement: 20kVA
Cool tank Capacity: 200 L

Hours: 13.169h according to counter (25/10/2023)
