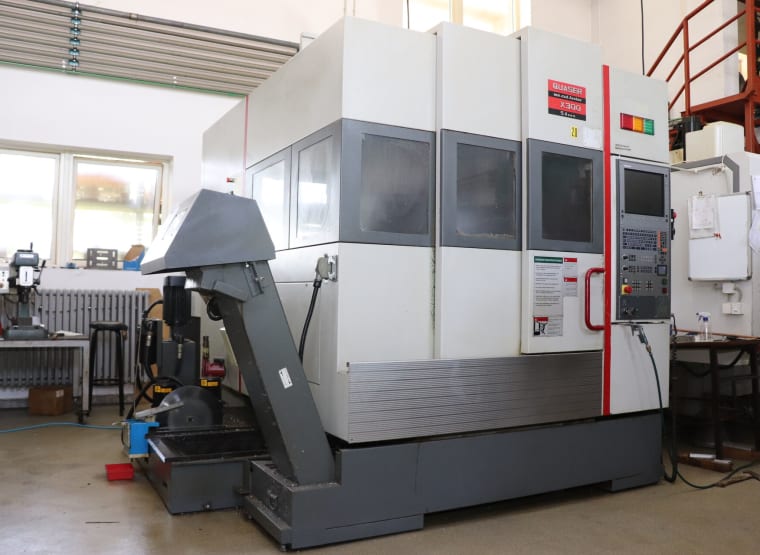

QUASER UX-300/15 C 5-Axis Vertical Machining Centre
Top lot
lot no. 3
25,000 €
72 watchers
Log in to bid
€
Use bidding agent
+ auction fee & VAT
Closes in 1d 23h
Closing time
25,000 €
Starting bid
Item details
- Name
- QUASER UX-300/15 C 5-Axis Vertical Machining Centre
- Item number
- 747323
- Manufacturer
- QUASER
- Model / Type
- UX-300/15 C
- Documents
- 1542191374_pdf.pdf
- Videos
-
Video 1 Video 2 Video 3 Video 4 Video 5 Video 6 Video 7 - Year of manufacture
- 2010
- Item available from
- immediately
- Item condition
- Location
-
Serbia, 22208 Mandjelos
- Show on map
- All items at this location
Costs and benefits
- 18 %
- 800.00 €
- Total Price
- plus VAT
- Shipping costs
- not included
- Delivery terms
- FCA Mandjelos, loaded on truck
- Payment terms
- 100% payment prior to collection
Technical details
- x-motion
- 410 mm
- y-motion
- 610 mm
- z-motion
- 500 mm
- control
- HEIDENHAIN
- table surface area l x w
- 320 x 320 mm
- toolchanger positions
- 48
- turning speed range
- 9 - 12000 rpm
- rapid motion
- 32 - 36 m/min
- total power requirement
- 35 kW
- weight approx.
- 7,400 kg
- workpiece weight
- 100 kg
- Approx. Onsite Dimension. (l x w x h)
- 2,800 x 2,880 x 2,990 mm
Item description
- for small parts up to diameter 400 x 352 mm / 100 kg
- serial number: 301D100027
- operating hours (machine on): approx. 44718 h
- spindle hours: approx. 18340 h
- spindle speed: 9 - 12000 rpm
- travels:
- X-axis: 410 mm
- Y-axis: 610 mm
- Z-axis: 500 mm
- A-axis: +30° - -120°
- C-axis: 360°
- max. swing:
- C-axis (rotary): diameter 400 mm
- A-axis (tilting): diameter 400 mm
- rapid movement:
- X-axis: 36 m/min.
- Y-axis: 36 m/min.
- Z-axis: 32 m/min.
- max. workpiece size: diameter 400 x 352 mm
- table load capacity: 100 kg
- table size: diameter 320 mm
- toolchanger positions: 48
- power: 35 kW, 400 V, 50 Hz
Transport dimensions:
- main machine: 2800 x 2880 x 2990 mm, weight 7400 kg
- chiller: 600 x 600 x 1400 mm, weight 100 kg
- bin: 2500 x 1200 x 1200 mm, weight 100 kg
- bin for emulsion: 2500 x 1200 x 1200 mm, weight 100 kg
Please also take a look at the videos and the PDF of this machine!
