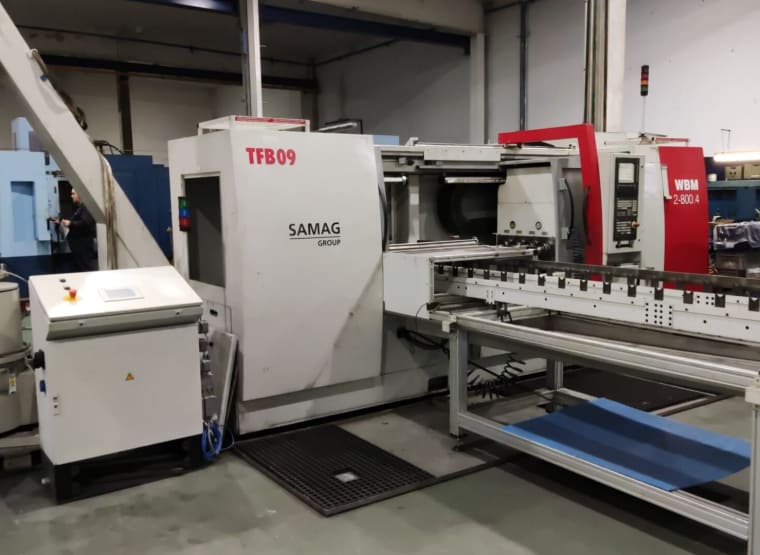

SAMAG WBM 2-8004 Deep Hole Drilling Machine

SAMAG WBM 2-8004 Deep Hole Drilling Machine
Name
SAMAG WBM 2-8004 Deep Hole Drilling Machine
Item number
838687
Manufacturer
SAMAG
Model / Type
WBM 2-8004
Documents
SAMAG-Datenblatt-WBM-en.pdf SAMAG-Katalog-WBM-2015-en.pdf
Videos
Video 1
Year of manufacture
2008
Item available from
Immediately
Item condition
Location
Spain, 48250 Zaldibar, Bizkaia
Dismantling & loading costs (binding)
5,000.00 €
Shipping costs
not included
Delivery terms
FCA Zaldibar, Bizkaia, loaded on truck
Payment terms
100% payment prior to collection
weight approx.
14,700 kg
Approx. Onsite Dimension. (l x w x h)
7,900 x 7,250 x 2,850 mm
  • Serial number: 67001
  • Control: Sinumerik 840D
  • Axes:
    • Z: 1300 mm
    • W: 900 mm
  • Feed speed:
    • C: 19.200 mm/min
    • W/Z- 5000 mm/min
  • Rapid traverse:
    • C: 47.600 mm/min
    • W/Z: 10.000 mm/min
  • Feeds:
    • W/Z: 16 800 N
  • Drilling method: Gun drill
  • Bore diameter min/max: 2.5-18 mm
  • Number of drilling spindles: 1-4 mm
  • Drilling depth: 800 mm
  • Spindle holder: HSK80 25x100 mm
  • Spindle distance: 160 mm
  • Power: 5.5 kw
  • Spindle speed: 10.000rpm
  • Rapid traverse: 10m/min
  • Coolant supply per spindle: 105 bar 45 l/min
  • Nominal spindle torque: 35 Nm
  • Rotation: 360º
  • Installed Power: 70kg
