SCHIESS 18000x4500mm Portal Milling Machine in Gantry design with integrated rotary table
Item details
- Name
- SCHIESS 18000x4500mm Portal Milling Machine in Gantry design with integrated rotary table
- Item number
- 768556
- Manufacturer
- SCHIESS
- Model / Type
- 50 FZG 14-450
- Documents
- Doku.pdf Fundament.pdf Circularity_form_test.pdf
- Videos
-
Video 1 Video 2 - Year of manufacture
- 2007
- Item available from
- immediately
- Item condition
- good, under power
- Location
-
Germany, 80997 München
- Show on map
- All items at this location
- Virtual 3D Tour: View this item on site
Costs and benefits
- 200,000.00 €
- Shipping costs
- not included
- Delivery terms
- FCA München, loaded on truck
- Payment terms
- 100% payment prior to collection
Technical details
- z-motion
- 1600 ( W + 2500 ) mm
- Distance spindle - table max.
- 3,500 mm
- x-motion
- 18,000 mm
- y-motion
- 6,770 mm
- control
- Sinumerik 840 D
- table surface area l x w
- 20000x4500 mm
- no. of milling heads horizontal
- 6
- no. of milling heads vertical
- 6
- distance between columns
- 5,500 mm
- tool taper
- SK 50
- weight approx.
- 100,000 kg
- Approx. Onsite Dimension. (l x w x h)
- 30,000 x 12,000 x 10,000 mm
Item description

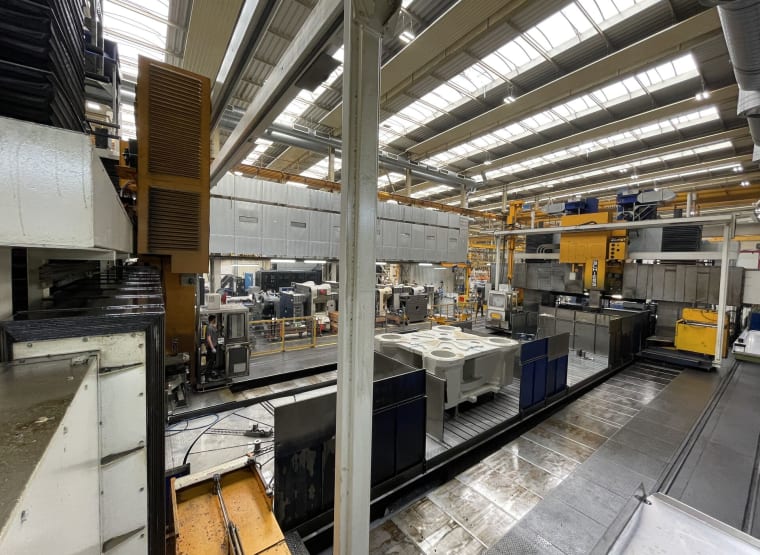

SCHIESS 50 FZG 14-450 5-Axis Double-Portal Machining Center with clamping plate and 4.5 m rotary table suitable for vertical turning.
Highlights
Please also check out the PDF and the video. The dismantling can be organized by us or in cooperation with the manufacturer!
Highlights
- 5-axis milling heads
- Gantries were overhauled by Dörries Scharmann Technologie in 2007/2009
- The overhaul included among others:
- New SIEMENS Sinumerik 840D control system
- New control cabinets with cable harnesses
- New drives
- In addition to the existing heads, 3 new angular heads and 3 straight heads were purchased
- Portal passage width max.: 5,500 mm
- Turning diameter in middle position max.: 5,500 mm
- Face plate diameter: 4,500 mm
- Table load face plate: 80 t
- Plate field dimensions approx.: 16,250 x 4,500 mm
- Table load plate field: 80 t
- Axis travel X-axis (per gantry): 18000 mm
- Axis travel Y-axis: 6770 mm
- Axis travel Z-axis: 1600 mm
- Axis travel W-axis: 2500 mm
- Faceplate power:100 kW
- Face plate speed: 0,63 - 63 rpm
- Power spindle: 80 kW
- Spindle speed range: 25 - 25000 rpm
- Gear stages: 2
- Tool change places: 60
- Tool holder: SK 50
Please also check out the PDF and the video. The dismantling can be organized by us or in cooperation with the manufacturer!
