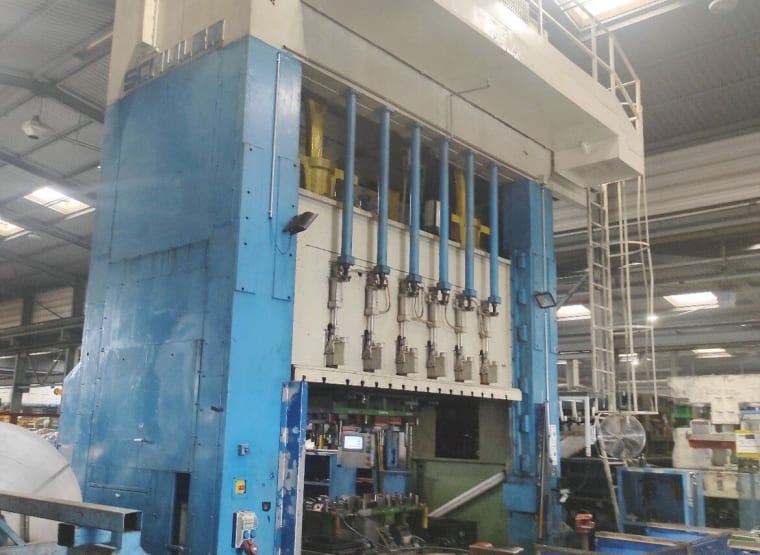

SCHULER E4-600-3.35-762 Press

SCHULER E4-600-3.35-762 Press
Name
SCHULER E4-600-3.35-762 Press
Item number
872231
Manufacturer
SCHULER
Model / Type
E4-600-3.35-762
Documents
spec.pdf
Videos
Video 1
Year of manufacture
1975
Item available from
Immediately
Item condition
Location
Spain, 08630 Abrera
Dismantling & loading costs (optional)
79,000.00 €
Shipping costs
not included
Delivery terms
EXW Abrera, ex foundation, unpackaged
Payment terms
100% payment prior to collection
Approx. Onsite Dimension. (l x w x h)
4,000 x 6,000 x 12,000 mm
weight approx.
380,000 kg
  • Serial Number: 74-20-0293
  • Width between uprights:  3700 mm
  • Table surface: 3350x2134 nn
  • Punch stroke: 762 mm
  • Distance between plate: 1322
  • Strokes per minute: 16/min
  • Table openings: 3
  • Main motor: 90 kw 1500rpm
  • Punch Motor: 7.5kw 1500 rpm
  • Lubrication equipment: 0.75kw 1500 rpm
  • Pump motor power: 1.1 kw 3000rpm
  • Voltage: 220V, 50 hz
Pneumatic installation:
  • Surface area: 1420x990 mm
  • Piston diameter: 800 mm
  • Stroke of plunger 305 mmm
  • Total power: 180Mp
