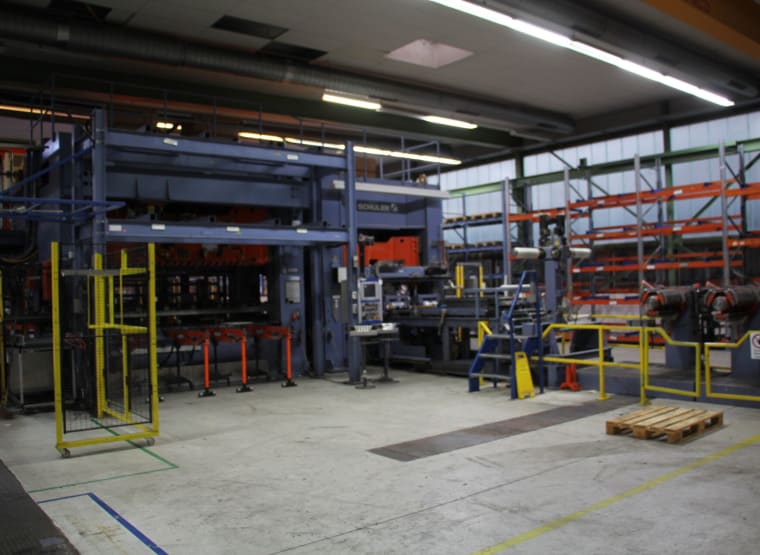

SCHULER SHC-320/SH-250 Hydraulic Transfer Press Line
Item details
- Name
- SCHULER SHC-320/SH-250 Hydraulic Transfer Press Line
- Item number
- 885976
- Manufacturer
- SCHULER
- Model / Type
- unknown
- Year of manufacture
- 2007
- Item available from
- immediately
- Item condition
- in working order, under power
- Location
-
Germany, 90579 Langenzenn
- Show on map
- All items at this location
Costs and benefits
- 25,000.00 €
- Shipping costs
- not included
- Delivery terms
- EXW Langenzenn, ex foundation, unpackaged
- Payment terms
- 100% payment prior to collection
Technical details
- Approx. Onsite Dimension. (l x w x h)
- 14,000 x 13,500 x 5,200 mm
- weight approx.
- 130,000 kg
Item description
Automated Press Line, consists of:
- 2 Decoilers, Maker Schuler,
- YOM 2007, Type: AC-UHL-110-0450,
- Coil feeder , Maker Schuler,
- YOM 2007, Type: AC-RH-096-0450,
- Sheet metal width Min 100 - Max 450/460 mm
- Sheet metal thickness Min 0,1 - Max 1,0 mm
- Hydraulic press, Maker Schuler
- YOM 2007, Type: SM-250-1.7x1.3,
- Pressure 250 t,
- Table 1200 x 1700 mm ( Tool base area),
- Total Tool weight max. 4000 kg
- Mounting height: 700 mm
- Stroke lenght. 350 mm
- Handling robot, Maker KUKA, Type KR6, KRC 2 Control
- Hydraulic press, Maker Schuler
- YOM 2007
- Type: SH-320-3.3x1.3,
- Pressure 320 to,
- Table 1600 x 1300 mm ( Tool base area),
- Mounting height: 1100 mm
- Stroke lenght max. 600 mm
- Total Tool weight max. 2x3500 kg
