Tip
lot no. 26
3,500 €
17 watchers
Log in to bid
€
Use bidding agent
+ auction fee & VAT
25/01/24 14:19
Closing time
3,500 €
Starting bid
Item details
- Name

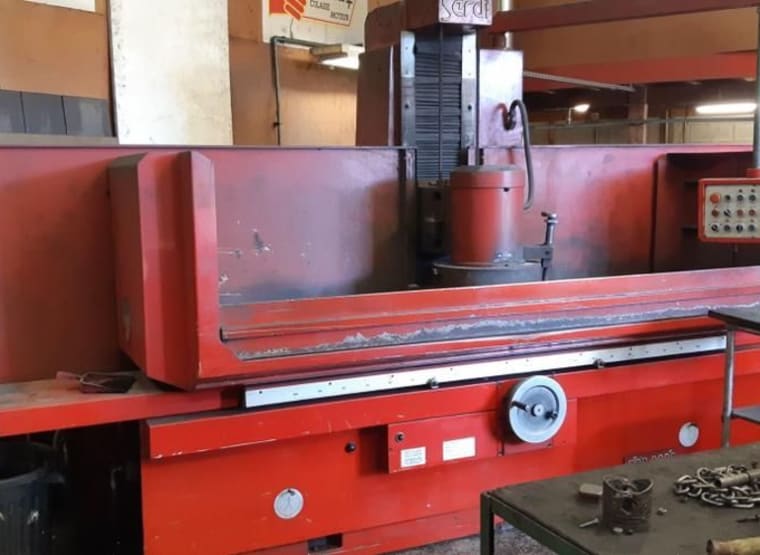

- SERDI SCB 2000 Cylinder Head Resurfacer
- Item number
- 870173
- Manufacturer
- SERDI
- Model / Type
- SCB 2000
- Documents
- 15_01.pdf 15_02.pdf
- Year of manufacture
- 1986
- Item available from
- Immediately
- Item condition
- Location
-
France, 35490 Sens De Bretagne
- Show on map
- All items at this location
Costs and benefits
- 18 %
- 1,200.00 €
- Total Price
- plus VAT
- Shipping costs
- not included
- Delivery terms
- FCA Sens De Bretagne, loaded on truck
- Payment terms
- 100% payment prior to collection
Technical details
- weight approx.
- 4,000 kg
- Approx. Onsite Dimension. (l x w x h)
- 4,100 x 1,650 x 2,400 mm
Item description
Useful table surface: 2000 x 290 mm
Longitudinal travel: 2350 mm
Max. grinding length: 2000 mm
Max. grinding width: 410 mm
Max. grinding height: 800 mm
Max. width to be planed by the tool: 300/340 mm
Table translation speed: 1/25 m/m1
Manual vertical feed. By handwheel : 0.01 mm
Automatic vertical grinding wheel feed synchronised with table eversion: 0.01-0.04
mm
Diameter of my grinding wheel with sectors: 420 mm
Dimensions of grinding wheel sectors: 21×59, 5×121 mm
Grinding wheel speed rpm: 950 n
Grinding wheel motor: 12 HP
Grinding head vertical rapid motor power: 4 HP
Electric coolant pump motor: 0.20 HP
Longitudinal travel: 2350 mm
Max. grinding length: 2000 mm
Max. grinding width: 410 mm
Max. grinding height: 800 mm
Max. width to be planed by the tool: 300/340 mm
Table translation speed: 1/25 m/m1
Manual vertical feed. By handwheel : 0.01 mm
Automatic vertical grinding wheel feed synchronised with table eversion: 0.01-0.04
mm
Diameter of my grinding wheel with sectors: 420 mm
Dimensions of grinding wheel sectors: 21×59, 5×121 mm
Grinding wheel speed rpm: 950 n
Grinding wheel motor: 12 HP
Grinding head vertical rapid motor power: 4 HP
Electric coolant pump motor: 0.20 HP
Automatic translation
Auction details
- Auction name
- Metalworking Machinery - France
- lot no.
- 26
- Documents
- Spec. Auction Terms
- Inspection
-
The exact location is available on request.
No fixed date. The items are in different locations (see item description). Viewing by appointment only!
- Pick up
-
Monday, 05/02/2024 to
Friday, 09/02/2024, from 08:00 to 16:00
Monday, 12/02/2024 to
Friday, 16/02/2024, from 08:00 to 16:00
