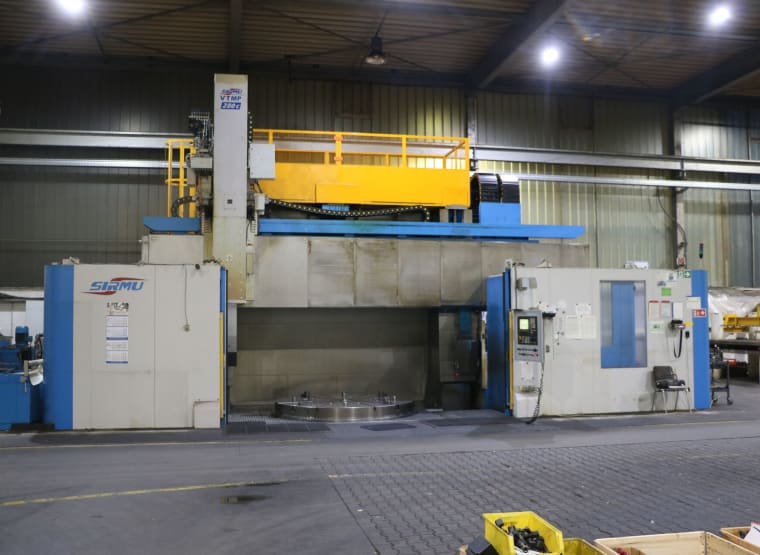

SIRMU VTMP 280 C Vertical Turret Lathe
Item details
- Name
- SIRMU VTMP 280 C Vertical Turret Lathe
- Item number
- 878760
- Manufacturer
- SIRMU
- Model / Type
- VTMP 280 C
- Documents
- dokumen.tips_made-in-italy-sirmu-mt-made-in-italy-il-vostro-partner-nella-tornitura-verticale.pdf SIRMU_VTL_de.pdf Sirmu_VTMP_280_C.pdf
- Year of manufacture
- 2009
- Item available from
- immediately
- Item condition
- in working order, under power
- Location
-
Germany, 57223 Kreuztal
- Show on map
- All items at this location
Costs and benefits
- 35,000.00 €
- Shipping costs
- not included
- Delivery terms
- FCA Kreuztal, loaded on truck
- Payment terms
- 100% payment prior to collection
Technical details
- control
- Siemens Sinumerik 840D
- weight approx.
- 35,000 kg
- Approx. Onsite Dimension. (l x w x h)
- 14,000 x 7,500 x 8,200 mm
Item description
Technical characteristics:
Control of the clamping plate during turning
Control of the clamping plate during milling
Tool magazine
subspindle
accuracy
Automatic HT rotary head
HIGHLIGHTS
Grinding spindle needs to be repaired
- Diameter of the workpiece faceplate: 2,800 mm
- Max. turning diameter: 4,200 mm
- Min. turning diameter: 435 mm
- Cross section of the carriage: 300x300 mm
- Max. permissible weight of the faceplate at average speed: 42 t
- Max. entry dimension with the sliding door open: 4,800 mm
- Max. diameter of workpiece in rotation: 4,400 mm
Control of the clamping plate during turning
- Main engine power: 71 kW
- Speed of the clamping plate: 1.3 + 190 n/1´
- Max. torque of the face plate: 187,706 Nm
Control of the clamping plate during milling
- C-axis motor speed range: 0.002 + 2.8 n/1´
- Programmable angle position: 3600,000 #
- Max. torque of C-axis motor: 41,900 Nm
- Adjustment speed of the cross slide: 480 mm/1
- Max. rotation height (Z-axis): 2,000 mm
- Max. depth - drilling / milling: 1,830 mm
- Max. clearance allowed under the mobile cross member: 2,320 mm
- Min. distance of the cross member from the clamping plate: 1,120 mm
- Travel of the mobile cross member: 1,200 mm
- Max. speed in rapid traverse of the X and Z axes: 15,000 mm/1
- Max. speed in rapid traverse of the X and A axes: 1+ 4,500 mm/1
- Travel distance beyond the machine center (X-axis): 200 mm
- Horizontal run (X-axis) to the left: 2,300 mm
- Horizontal run (X-axis) to the right: 3,850 mm
- Travel of the work group (Z-axis): 1,500 mm
Tool magazine
- Positions in the magazine: 30+2
- Tool cross section: 40x40 mm
- Max. weight of the tool carriers and tools (Z-axis): 200 KG
- Max. permissible weight in the magazine: 2,700 KG
subspindle
- Motor power: 37 kW
- Speed range: 2#
- Tool holder: ISO 50
- Max. rotation speed, stepless: 3,000 n/1
accuracy
- P-position inaccuracy: mm 0.008 mt
- PS repeatability error: mm 0.0035 mt
- Pa positioning accuracy: 0.006 mm
- U- Reversal error: 0.003 mm
Automatic HT rotary head
- Tool cone mount: ISO 50
- Max. transmitted power: 37 kW
- Max. transmitted torque: 1,510 Nm
- Max. tool revolutions: 3,000 n/1
- Tool locking: automatic
- Spindle orientation according to vertical: +/- 105°
- Flow of the cooling lubricant: inside / outside
HIGHLIGHTS
- hydrostatic guides for all machine axes
- Machines with 2 chisel slide supports for greater flexibility and high cutting performance
- high static load and torsional rigidity direct linear measuring systems
- heat-resistant lubrication through spindle temperature control
Grinding spindle needs to be repaired
