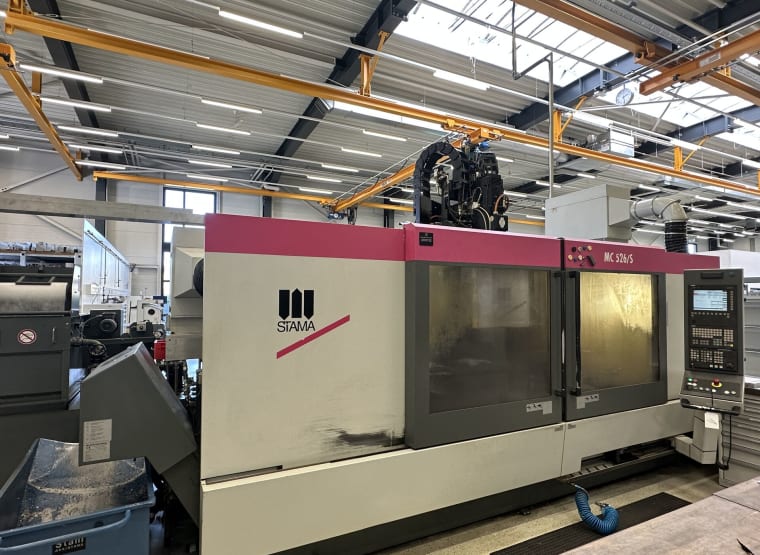

STAMA MC 526/S CNC Moving Column Machining Centre

STAMA MC 526/S CNC Moving Column Machining Centre
Tip
lot no. 202
Closing time: 01/02/24 13:20
4,900 € Starting bid
40 watchers
Log in to bid
Use bidding agent
+ auction fee & VAT
STAMA MC 526/S CNC Moving Column Machining Centre
01/02/24 13:20
Closing time
4,900 €
Starting bid
Name
STAMA MC 526/S CNC Moving Column Machining Centre
Item number
867165
Manufacturer
STAMA
Model / Type
MC 526/S
Year of manufacture
2006
Item available from
immediately
Item condition
Location
Germany, 73529 Schwäbisch Gmünd
Buyer’s premium
18 %
Dismantling & loading costs (binding)
1,000.00 €
Total Price
plus VAT
Shipping costs
not included
Delivery terms
FCA Schwäbisch Gmünd, loaded on truck
Payment terms
100% payment prior to collection
Approx. Onsite Dimension. (l x w x h)
6,500 x 3,000 x 2,900 mm
weight approx.
8,400 kg
  • machine no.: KMM 526 1213
  • operating voltage: 400 V
  • frequency: 50 Hz
  • nominal current: 45 A
  • pre-switching fuse: 3 x 50 A
  • control system: SIEMENS SINUMERIK 840 D
  • working spindle:
  • spindle bearing diameter: 70 mm
  • tool holder: SK 40
  • Max. torque value: 45 Nm
  • spindle speed: 36 – 10500 rpm
  • tool magazine:
  • number of tools: 42-fold
  • tool clamping: 8000 N
  • Max. tool diametre: 125 mm
  • Max. tool length: 250 mm
  • feed rate:
  • X-axis: 10000 mm/min
  • Y-axis: max. 10000 mm/min
  • Z-axis: max. 10000 mm/min
  • rapid traverse:
  • X-axis: 60 m/min
  • Y-axis: 60 m/min
  • Z-axis: 60 m/min
  • Max. feed force:
  • X-axis: 4000 N
  • Y-axis: 4000 N
  • Z-axis: 8000 N
  • chiping values:
  • Max. milling performance: 460 cm³
  • Max. drill diameter: 40 mm
  • Max. thread diameter: M30
  • travels:
  • X-axis: 2200 mm
  • Y-axis: 400 mm
  • Z-axis: 360 mm
  • jib length: 350 mm
  • table up to spindle nose: min. 200 mm
  • table up to spindle nose: max. 560 mm
  • table dimensions: 2700 x 460 mm
  • with 3 slots
  • attention: the machine vices located on the clamping surface are not included in the scope of delivery
  • attention: without the SK 40 tool holders located on the tool changer
  • Incl. chip conveyor of manufacturer BLECHTECHNIK and one cooling water system of manufacturer BLECHTECHNIK
  • attention: the machine can be transported on a standard truck up to 3000 mm width
